Products › Power & Rack Equipment

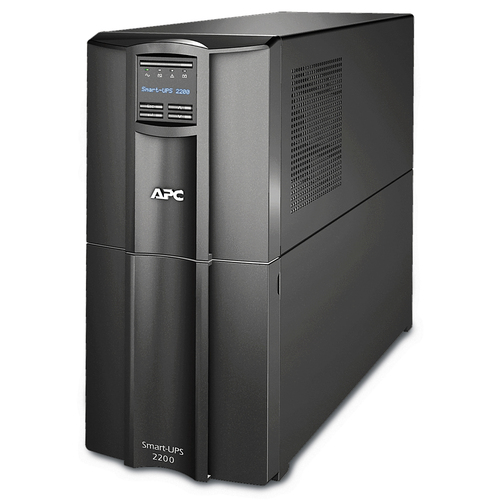

APC SMT2200C uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 1980 W 10 AC outlet(s)
Part number SMT2200C
SMT2200C - UPS - TOWER - LINE-INTERACTIVE - 120 V AC 1 PHASE - 1920WATT - 1920VA
- Line-Interactive
- 2.2 kVA 1980 W
- Waveform: Sine
- 10 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Tower Black
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SMT2200C
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Smart-UPS 2200VA with APC SmartConnect
Protect your servers, switches, routers and networking devices while providing battery backup power with Smart-UPS SMT2200C with APC SmartConnect, the first cloud-enabled UPS for distributed IT. The service-free cloud monitoring feature is accessible from any internet-connected device, and maximizes the life and performance of your UPS by providing proactive advice and life-cycle recommendations so you can remotely monitor your power infrastructure from anywhere.
An Overview of Smart-UPS and the SmartConnect App
APC SmartConnect makes Smart-UPS more adaptable and easier to deploy than ever before, enabling you to view the status of your UPS through a secure web portal. Through this intuitive remote management interface, you’ll receive automatic notifications, firmware updates, and advanced support; providing you with added value – and more importantly – added peace of mind.
Secure, remote monitoring
Connected Smart-UPS support remote monitoring through a secure web portal, so you can always be up to date on the status of your power infrastructure.
Proactive lifecycle alerts
Maximize the life span of the UPS and protect your investment with proactive alerts for firmware upgrade, device maintenance, and warranty protection.
Cloud enabled as standard
Smart-UPS models with SmartConnect are cloud-enabled and have a built-in Ethernet port, making it easy and cost effective to monitor your UPS online.
Simple to Use Interface
Our simple web interface is designed to support both system administrators and non-tech users alike, with clear notifications in plain language.
Specifications
| UPS topology | Line-Interactive |
|---|---|
| Output power capacity | 2.2 kVA |
| Output power | 1980 W |
| Waveform | Sine |
| Input operation voltage (min) | 75 V |
| Input operation voltage (max) | 154 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 110 V |
| Output operation voltage (max) | 127 V |
| Output frequency | 50/60 Hz |
| Automatic Voltage Regulation (AVR) | Yes |
| Surge energy rating | 530 J |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Noise level | 45 dB |
| Surge protection | No |
| Audible alarm(s) | Yes |
| Web-based management | Yes |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| Auto-restart | Yes |
| Temperature voltage compensation | Yes |

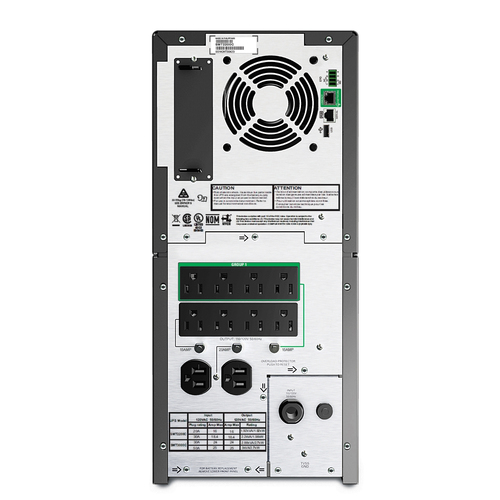

| AC outlet types | NEMA 5–15R, NEMA 5–20R |
|---|---|
| Power plug | NEMA 5-20P |
| AC outlets quantity | 10 AC outlet(s) |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Ethernet LAN (RJ-45) ports | 1 |
| SmartSlot | Yes |
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Number of batteries supported | 1 |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Form factor | Tower |
|---|---|
| Cable length | 1.83 m |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Certification | CSA, FCC, UL |
|---|
| Sustainability certificates | ENERGY STAR |
|---|
| Width | 196 mm |
|---|---|
| Depth | 544 mm |
| Height | 432 mm |
| Weight | 50.9 kg |
| Package width | 381 mm |
|---|---|
| Package depth | 762 mm |
| Package height | 559 mm |
| Package weight | 60.9 kg |
| Products per pallet | 9 pc(s) |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
