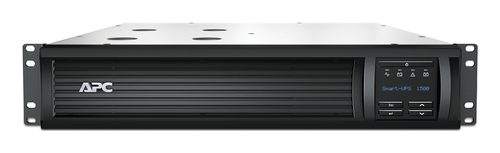

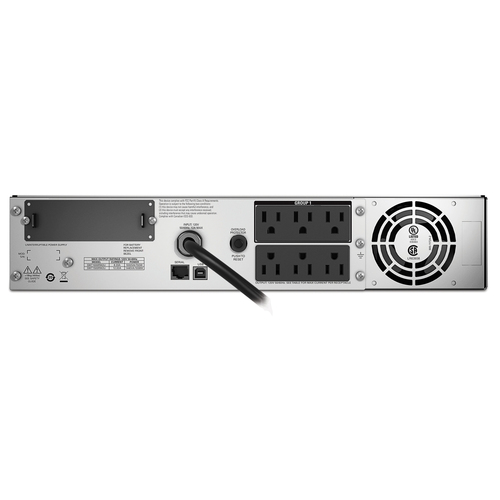

APC Smart-UPS 1.5kVA 120V RM SHIPBOARD
Part number SMT1500RMX93
SMT1500RMX93 - UPS - RACK-MOUNTABLE - LINE-INTERACTIVE - 120 V - 1000WATT - 1440
- <a>Replacement battery (1)</a> is available
- Designed for rack installation, saving space in data centers
- Provides 1440VA and 1000W of power, suitable for critical equipment
- Features an LED status display for easy monitoring
- Enhances battery life and performance
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SMT1500RMX93
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Specifications
| UPS topology | Line-Interactive |
|---|---|
| Output power capacity | 1.44 kVA |
| Output power | 1000 W |
| Waveform | Sine |
| Input operation voltage (min) | 82 V |
| Input operation voltage (max) | 144 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (max) | 120 V |
| Output frequency | 50/60 Hz |
| Surge energy rating | 693 J |
| Response time | 6 ms |
| Noise level | 45 dB |
| Audible alarm(s) | Yes |
| AC outlet types | NEMA 5-15R |
|---|---|
| Power plug | NEMA 5-15P |
| AC outlets quantity | 6 AC outlet(s) |
| USB port | Yes |
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Battery capacity | 432 Ah |
| Typical backup time at full load | 7 min |
| Typical backup time at half load | 26 min |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
| Form factor | Rackmount |
|---|---|
| Rack capacity | 0U |
| Product colour | Black |
| Control type | Buttons |
| Display type | LED |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Compliance certificates | REACH, RoHS, WEEE |
|---|---|
| Certification | REACH, RoHS, WEEE, CSA C22.2 No 107.1 |
| Manual | Yes |
|---|
| Doesn't contain | Mercury |
|---|
| Width | 432 mm |
|---|---|
| Depth | 477 mm |
| Height | 86 mm |
| Weight | 26.5 kg |
| Package width | 610 mm |
|---|---|
| Package depth | 590 mm |
| Package height | 235 mm |
| Package weight | 26.5 kg |
| Warranty period | 3 year(s) |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
