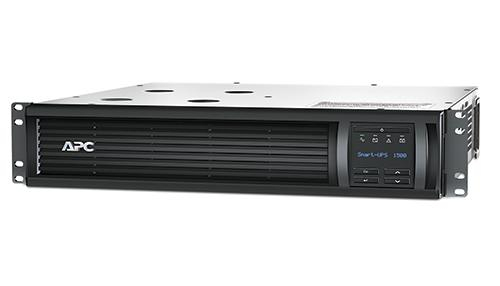

APC SMT1500RMJ2U uninterruptible power supply (UPS) 1.5 kVA 1200 W 6 AC outlet(s)
Part number SMT1500RMJ2U
APC SMART-UPS, 1200 WATTS / 1200 VA, INPUT 100V / OUTPUT 100V , INTERFACE PORT S
- 1.5 kVA 1200 W
- 6 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Rackmount Black
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SMT1500RMJ2U
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview

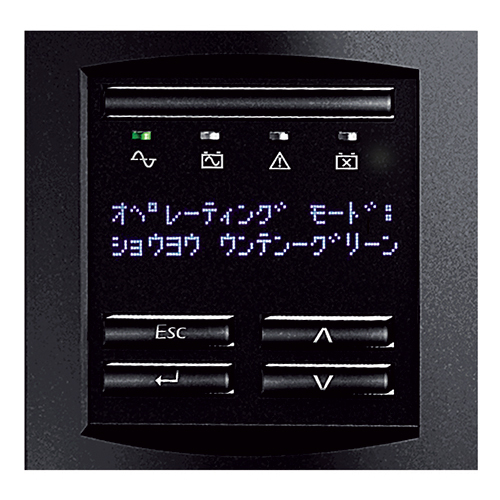

- Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Provides actual kilowatt hours of usage for energy conscious users.
- Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Reduces utlility costs, generates less heat.
- Customize UPS capabilities with management cards.
- Prolongs battery life by regulating the charge voltage according to battery temperature.
Specifications
| Output power capacity | 1.5 kVA |
|---|---|
| Output power | 1200 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 100 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 100 V |
| Output operation voltage (max) | 100 V |
| Maximum current | 12 A |
| Surge energy rating | 540 J |
| Efficiency | 97.6% |
| Output voltage Total Harmonic Distortion (THD) | 7% |
| EMI/RFI noise filtering | Yes |
| Noise level | 46 dB |
| Surge protection | Yes |
| Audible alarm(s) | Yes |
| AC outlet types | NEMA 5–15R |
|---|---|
| Power plug | NEMA 5-15P |
| AC outlets quantity | 6 AC outlet(s) |
| USB 2.0 ports quantity | 1 |
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Battery recharge time | 4 h |
| Form factor | Rackmount |
|---|---|
| Rack capacity | 2U |
| Cable length | 2.44 m |
| Cooling type | Active |
| Built-in fan | Yes |
| Product colour | Black |
| Display type | LCD |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Compliance certificates | RoHS |
|---|---|
| Certification | REACH, RoHS, UL 1778, VCCI A |
| Width | 432 mm |
|---|---|
| Depth | 468 mm |
| Height | 86 mm |
| Weight | 27.8 kg |
| Package weight | 33 kg |
|---|
| Battery type | APCRBC133 |
|---|---|
| Package dimensions (WxDxH) | 594 x 603 x 251 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
