Products › Power & Rack Equipment

APC BY SCHNEIDER ELECTRIC

APC Smart-UPS SMT1500RMI2UNC - 4x C13, USB, rack mountable, NMC, 1500VA

Part number SMT1500RMI2UNC

APC SMART-UPS 1500VA LCD RM 2U 230V WITH

  • Line-Interactive
  • 1.5 kVA 1000 W
  • Waveform: Sine
  • 4 AC outlet(s)
  • Sealed Lead Acid (VRLA) 432 Ah
  • Rackmount Black
Manufacturer
APC BY SCHNEIDER ELECTRIC
Part number
SMT1500RMI2UNC
Condition
New
Category
Power & Rack Equipment › Power Equipment
1GPA category
Hardware

Overview

Stay always online and prevent data loss

As soon as the power goes out, an APC Smart-UPS immediately provides emergency power to all connected equipment. Because an APC UPS does this automatically, you prevent unwanted failure of, for example, a PC, server or switch. With the APC PowerChute Network Shutdown software you can even have critical IT hardware shut down automatically and in a controlled manner when the battery of the UPS is almost empty. This way you prevent data loss, downtime and physical damage to hardware.

Safety

In addition, a Smart-UPS protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for (small) business use.

Battery life

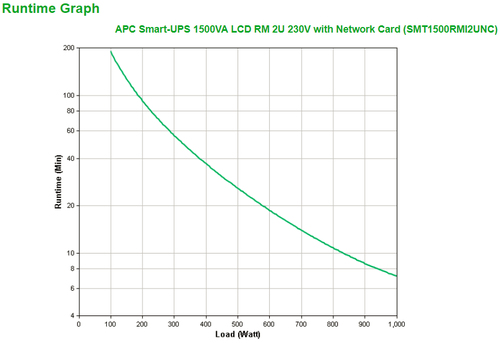

You can easily read the expected battery life in the runtime graph, which you can find between the product images. You can easily see how long the UPS supplies emergency power at a certain load.

Manage your Smart-UPS

Thanks to the pre-installed network card (ap9641), you can easily connect the APC UPS to the network. This way you can monitor and manage the UPS remotely (SNMP) and the UPS can send a shutdown signal to multiple physical and/or virtual servers using PowerChute Network Shutdown software.

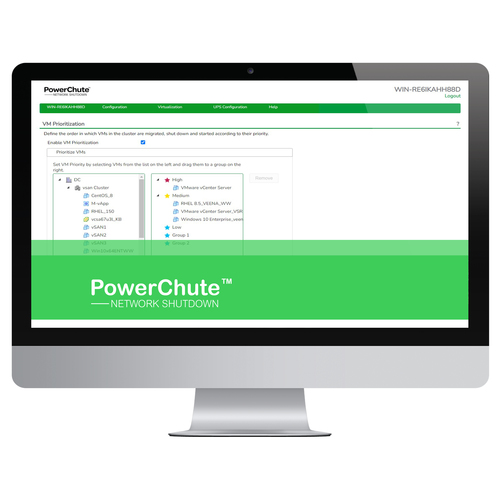

PowerChute Network Shutdown

PowerChute Network Shutdown is UPS management software that works with the UPS Network Management Card to protect Windows, Linux and Host ESXi, as well as hyperconverged and virtual infrastructure*. In the event of a power outage, PowerChute can properly shut down your virtual machines and the preconfigured boot sequence ensures they are turned back on.

*An additional license is required for HCI and virtual machine support:

1 year: SWPCNS1Y-DIGI

Up to (Replace the bold number in the article number for the desired variant)

6 years: SWPCNS6Y-DIGI

Remote management and monitoring of your network

The network card can be managed remotely via the easy-to-use web browser interface, remote management software EcoStruxure™ IT (SFTWES1-DIGI) or other SNMP-compatible system. Tip EcoStruxure™ IT also includes the functionalities of the support contract below.

Support contract

The optional network card support contract license* ensures you are always up to date and secure and includes additional benefits such as frequent updates with:

• New and improved features

• Security updates

• Advanced support

(The support contract functionality is included free of charge in the first year of the UPS)

*The above license and available in the variants:

1 year: SWNMC3SU-1Y-DIGI

Up to (Replace the bold number in the article number for the desired variant)

6 years: SWNMC3SU-6Y-DIGI

Ease of use

By means of physical buttons and an LCD screen make it possible to set and read the basic functionalities.

Extend the lifespan

The internal battery cartridge (APCRBC133) can be replaced easily, safely and independently by the user. This without having to switch off the APC SMT1500RMI2UNC or connected equipment. This way you can easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment always remains online.

Specifications

Features
UPS topologyLine-Interactive
Output power capacity1.5 kVA
Output power1000 W
WaveformSine
Input operation voltage (min)151 V
Input operation voltage (max)302 V
Input frequency50/60 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Output frequency50/60 Hz
Output voltage regulation5%
Surge energy rating459 J
Response time2 ms
Emergency Power Off (EPO)O
Noise level46 dB
Audible alarm(s)Yes
Web-based managementYes
Audible alarm modesBattery replacement
Auto-restartYes
Ports & interfaces
AC outlet typesC13 coupler, C14 coupler
Power plugC14 coupler
AC outlets quantity4 AC outlet(s)
USB 2.0 ports quantity1
Ethernet LAN (RJ-45) ports1
SmartSlotYes
SmartConnect portNo
Battery
Battery technologySealed Lead Acid (VRLA)
Battery capacity432 Ah
Battery recharge time3 h
Hot-swap batteryYes
Automatic battery testYes
Cold startYes
Design
Form factorRackmount
Rack capacity2U
Product colourBlack
Display typeLCD
LED indicatorsYes
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Certificates
Compliance certificatesRoHS
CertificationCE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE
Packaging content
Rack mount kitYes
Cables includedInput power cable, USB cable
Management card includedYes
Quick installation guideYes
Sustainability
Sustainability certificatesGreen Premium
Weight & dimensions
Width432 mm
Depth457 mm
Height89 mm
Weight28.6 kg
Packaging data
Resource CDYes
Package width594 mm
Package depth603 mm
Package height251 mm
Package weight31.8 kg
Logistics data
Products per pallet8 pc(s)
Harmonized System (HS) code85078000
Total carbon footprint (kg of CO2e)1407.66
Other features
Output voltage230 V

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
