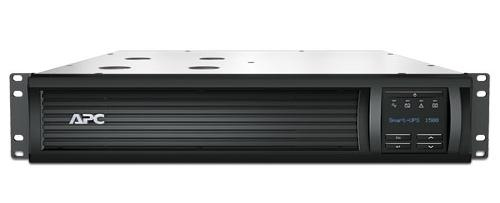

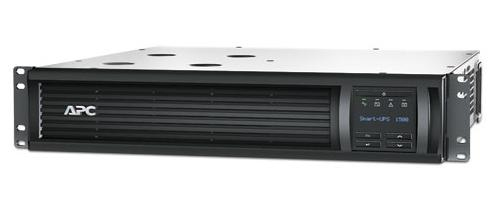

APC Smart-UPS 1500VA uninterruptible power supply (UPS) Line-Interactive 1.44 kVA 1000 W 6 AC outlet(s)
Part number SMT1500R2X122
SMART-UPS 1500VA LCD RM 2U 120V- 2U - LINE-INTERACTIVE - 1000WATT - 1440VA - NEM
- Line-Interactive
- 1.44 kVA 1000 W
- Waveform: Sine
- 6 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Rackmount Black
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SMT1500R2X122
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
APC Smart-UPS 1500VA LCD RM 2U 120V with L5-15P
Reliable network power protection designed for deployment in retail and open access environments.
Includes : CD with software , Documentation CD , Installation guide , Rack Mounting support rails , Smart UPS signalling RS-232 cable , USB cable
- Cold-start capable
Provides temporary battery power when the utility power is out.
- Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
- Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- High online efficiency
Reduces utlility costs, generates less heat.
- Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- SmartSlot
Customize UPS capabilities with management cards.
- Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Serviceability
- Easy to install
Innovative design allows for fast, easy installation by almost anybody.
- User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Specifications
| UPS topology | Line-Interactive |
|---|---|
| Output power capacity | 1.44 kVA |
| Output power | 1000 W |
| Waveform | Sine |
| Input operation voltage (min) | 75 V |
| Input operation voltage (max) | 154 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 120 V |
| Output operation voltage (max) | 120 V |
| Output frequency | 50/60 Hz |
| Surge energy rating | 459 J |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Surge protection | Yes |
| Audible alarm(s) | Yes |
| Audible alarm modes | Alarm when on battery, Low battery alarm |
| Auto-restart | Yes |

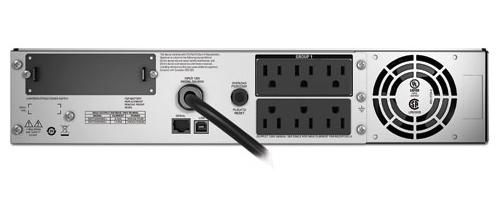

| AC outlet types | NEMA 5–15R |
|---|---|
| Power plug | NEMA L5-15P |
| AC outlets quantity | 6 AC outlet(s) |
| USB port | Yes |
| SmartSlot | Yes |
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Battery capacity | 432 VAh |
| Battery life (max) | 6 year(s) |
| Battery recharge time | 3 h |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Cold start | Yes |
| Form factor | Rackmount |
|---|---|
| Rack capacity | 2U |
| Cable length | 2.44 m |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Status, Battery replacement |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Compliance certificates | RoHS |
|---|---|
| Certification | CSA, FCC Part 15 Class A, UL 1778, REACH, PEP, EOLI |
| Rack mount kit | Yes |
|---|---|
| Cables included | RS-232, USB cable |
| Quick installation guide | Yes |
| Sustainability certificates | ENERGY STAR |
|---|
| Width | 432 mm |
|---|---|
| Depth | 457 mm |
| Height | 89 mm |
| Weight | 28.6 kg |
| Resource CD | Yes |
|---|---|
| Software CD | Yes |
| Package width | 594 mm |
| Package depth | 603 mm |
| Package height | 251 mm |
| Package weight | 31.9 kg |
| Products per pallet | 16 pc(s) |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
