Overview

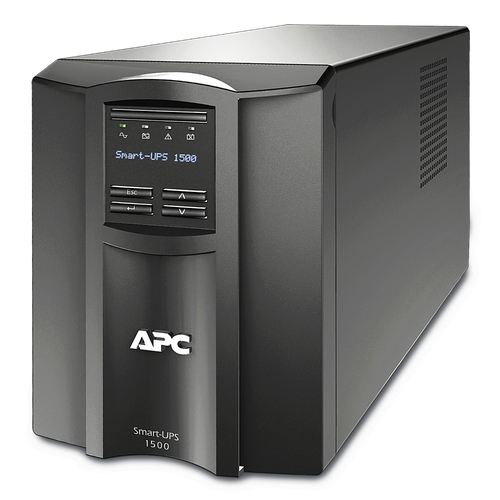

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1500VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input, 8x IEC 320 C13 outlets, and 2x IEC jumper cables. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
Specifications
Features
| UPS topology | Line-Interactive |
|---|
| Output power capacity | 1.5 kVA |
|---|
| Output power | 1000 W |
|---|
| Waveform | Sine |
|---|
| Input operation voltage (min) | 151 V |
|---|
| Input operation voltage (max) | 302 V |
|---|
| Input frequency | 50/60 Hz |
|---|
| Output operation voltage (min) | 220 V |
|---|
| Output operation voltage (max) | 240 V |
|---|
| Surge energy rating | 459 J |
|---|
| Efficiency | 98.7% |
|---|
| Noise level | 45 dB |
|---|
| Audible alarm(s) | Yes |
|---|
| Audible alarm modes | Low battery alarm, Overload alarm |
|---|
Ports & interfaces
| AC outlet types | C13 coupler |
|---|
| Power plug | C14 coupler |
|---|
| AC outlets quantity | 8 AC outlet(s) |
|---|
| Number of output IEC jumpers | 2 |
|---|
| USB port | Yes |
|---|
| SmartSlot | Yes |
|---|
Battery
| Battery technology | Sealed Lead Acid (VRLA) |
|---|
| Battery capacity | 408 VAh |
|---|

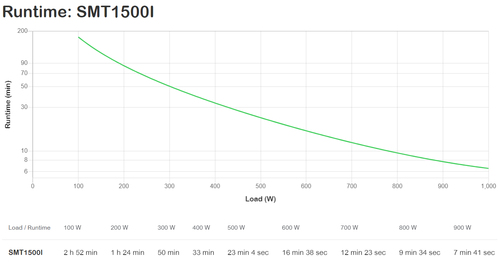

| Typical backup time at full load | 6.5 min |
|---|
| Typical backup time at half load | 23.1 min |
|---|
| Battery life (max) | 5 year(s) |
|---|
| Battery recharge time | 3 h |
|---|
| Hot-swap battery | No |
|---|
| Automatic battery test | Yes |
|---|
| Cold start | Yes |
|---|
Design
| Form factor | Tower |
|---|
| Cable length | 1.83 m |
|---|
| Product colour | Black |
|---|
| LED indicators | Status |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -15 - 45 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95% |
|---|
| Storage relative humidity (H-H) | 0 - 95% |
|---|
| Operating altitude | 0 - 3000 m |
|---|
| Non-operating altitude | 0 - 15000 m |
|---|
Certificates
| Compliance certificates | RoHS |
|---|
| Certification | CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH, PEP, EOLI |
|---|
Packaging content
| Cables included | RS-232, USB cable |
|---|
| Quick installation guide | Yes |
|---|
Sustainability
| Sustainability certificates | ENERGY STAR, Green Premium |
|---|
Weight & dimensions
| Width | 171 mm |
|---|
| Depth | 439 mm |
|---|
| Height | 219 mm |
|---|
| Weight | 24.1 kg |
|---|
Packaging data
| Software CD | Yes |
|---|
| Package width | 328 mm |
|---|
| Package depth | 595 mm |
|---|
| Package height | 376 mm |
|---|
| Package weight | 27.2 kg |
|---|
Logistics data
| Products per pallet | 12 pc(s) |
|---|
| Total carbon footprint (kg of CO2e) | 1269.84 |
|---|
Other features
| Nominal output voltage | 230 V |
|---|
| Nominal input voltage | 230 V |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
