Overview

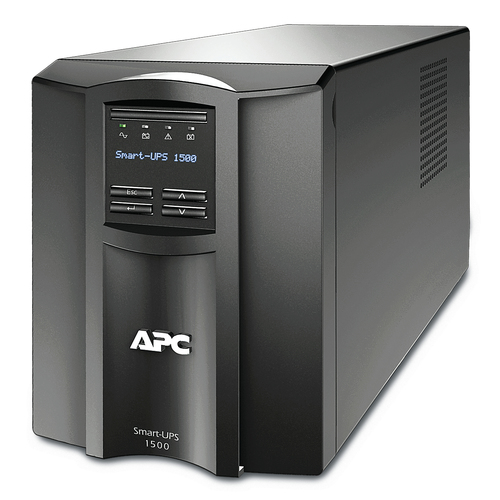

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1440VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 8 NEMA 5-15R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
Specifications
Features
| UPS topology | Line-Interactive |
|---|
| Output power capacity | 1.44 kVA |
|---|
| Output power | 1000 W |
|---|
| Waveform | Sine |
|---|
| Input operation voltage (min) | 75 V |
|---|
| Input operation voltage (max) | 154 V |
|---|
| Input frequency | 50/60 Hz |
|---|
| Output operation voltage (min) | 110 V |
|---|
| Output operation voltage (max) | 127 V |
|---|
| Automatic Voltage Regulation (AVR) | Yes |
|---|
| Surge energy rating | 680 J |
|---|
| Response time | 10 ms |
|---|
| EMI/RFI noise filtering | Yes |
|---|
| Noise level | 45 dB |
|---|
| Power protection features | Short circuit |
|---|
| Audible alarm(s) | Yes |
|---|
| Web-based management | Yes |
|---|
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
|---|
| Auto-restart | Yes |
|---|
Ports & interfaces

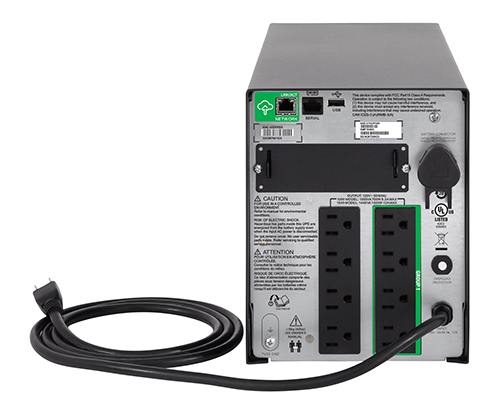

| AC outlet types | NEMA 5-15R |
|---|
| AC outlets quantity | 8 AC outlet(s) |
|---|
| USB port | Yes |
|---|
| Serial interface | Yes |
|---|
| SmartSlot | Yes |
|---|
Battery
| Battery technology | Sealed Lead Acid (VRLA) |
|---|
| Number of batteries supported | 1 |
|---|
| Battery life (max) | 5 year(s) |
|---|
| Battery recharge time | 3 h |
|---|
| Hot-swap battery | Yes |
|---|
| Automatic battery test | Yes |
|---|
| Cold start | Yes |
|---|
Design
| Form factor | Tower |
|---|
| Cable length | 1.83 m |
|---|
| Product colour | Black |
|---|
| Display type | LCD |
|---|
| LED indicators | Status |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -15 - 45 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95% |
|---|
| Storage relative humidity (H-H) | 0 - 95% |
|---|
| Operating altitude | 0 - 3000 m |
|---|
| Non-operating altitude | 0 - 15000 m |
|---|
Certificates
| Compliance certificates | RoHS |
|---|
| Certification | REACH |
|---|
Packaging content
| Cables included | RS-232, USB cable |
|---|
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
Weight & dimensions
| Width | 171 mm |
|---|
| Depth | 439 mm |
|---|
| Height | 219 mm |
|---|
| Weight | 24.6 kg |
|---|
Packaging data
| Resource CD | Yes |
|---|
| Software CD | Yes |
|---|
| Package width | 330 mm |
|---|
| Package depth | 590 mm |
|---|
| Package height | 330 mm |
|---|
| Package weight | 27.2 kg |
|---|
Logistics data
| Harmonized System (HS) code | 85078000 |
|---|
