Overview
Description

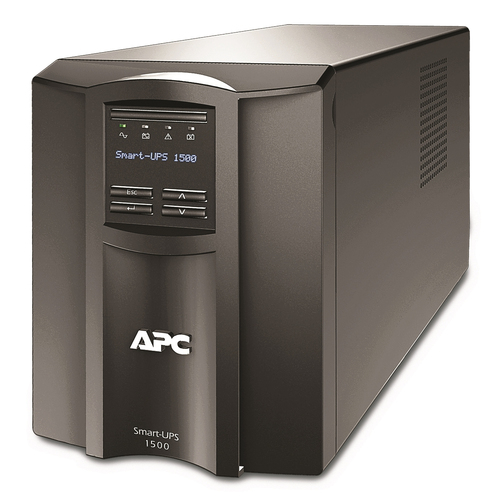

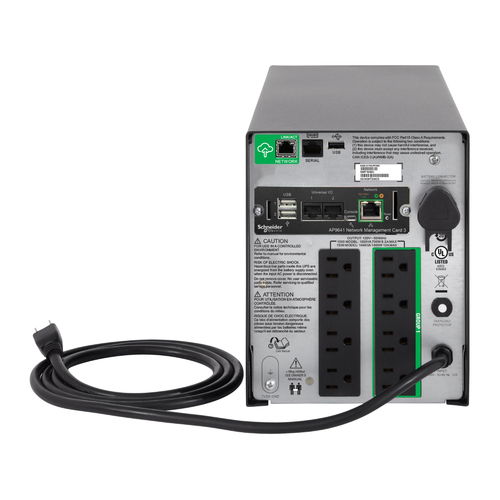

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1440VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 8 NEMA 5-15R outlets. It has a preinstalled Network Management Card for UPS network-based monitoring and management. It comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
Specifications
Features
| UPS topology | Line-Interactive |
|---|
| Output power capacity | 1.44 kVA |
|---|
| Output power | 1000 W |
|---|
| Waveform | Sine |
|---|
| Input operation voltage (min) | 110 V |
|---|
| Input operation voltage (max) | 125 V |
|---|
| Input frequency | 50/60 Hz |
|---|
| Output operation voltage (min) | 110 V |
|---|
| Output operation voltage (max) | 125 V |
|---|
| Output frequency | 50/60 Hz |
|---|
| Automatic Voltage Regulation (AVR) | Yes |
|---|
| Surge energy rating | 680 J |
|---|
| Response time | 10 ms |
|---|
| Heat dissipation | 225 BTU/h |
|---|
| Output voltage Total Harmonic Distortion (THD) | 5% |
|---|
| Noise level | 45 dB |
|---|
| Audible alarm modes | Alarm when on battery, Low battery alarm |
|---|
Ports & interfaces
| AC outlet types | NEMA 5-15R |
|---|
| Power plug | NEMA 5-15P |
|---|
| AC outlets quantity | 8 AC outlet(s) |
|---|
| USB port | Yes |
|---|
| USB 2.0 ports quantity | 3 |
|---|
| USB port type | USB Type-A |
|---|
| Serial interface | Yes |
|---|
| Serial interface type | RJ-45 |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| SmartSlot | Yes |
|---|
Battery
| Battery technology | Lead-Acid |
|---|
| Battery life (max) | 5 year(s) |
|---|
| Battery recharge time | 3 h |
|---|
Design
| Form factor | Mini Tower |
|---|
| Cable length | 1.8 m |
|---|
| Product colour | Black |
|---|
| Control type | Buttons |
|---|
| Display type | LCD |
|---|
| LED indicators | Yes |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -15 - 45 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95% |
|---|
| Storage relative humidity (H-H) | 0 - 95% |
|---|
| Operating altitude | 0 - 3000 m |
|---|
| Non-operating altitude | 0 - 15240 m |
|---|
Packaging content
| Cables included | USB cable |
|---|
| Quick installation guide | Yes |
|---|
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
Weight & dimensions
| Width | 171 mm |
|---|
| Depth | 439 mm |
|---|
| Height | 219 mm |
|---|
| Weight | 24.6 kg |
|---|
Packaging data
| Package width | 590 mm |
|---|
| Package depth | 330 mm |
|---|
| Package height | 330 mm |
|---|
| Package weight | 27.3 kg |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
