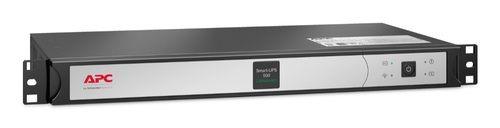

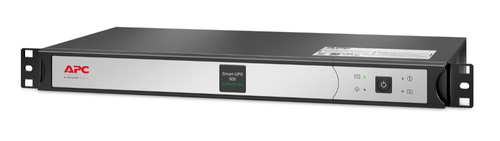

Overview
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Specifications
Features
| UPS topology | Line-Interactive |
|---|
| Output power capacity | 0.5 kVA |
|---|
| Output power | 400 W |
|---|
| Waveform | Sine |
|---|
| Input operation voltage (min) | 92 V |
|---|
| Input operation voltage (max) | 139 V |
|---|
| Input frequency | 47/63 Hz |
|---|
| Output operation voltage (min) | 120 V |
|---|
| Output operation voltage (max) | 120 V |
|---|
| Output frequency | 50/60 Hz |
|---|
| Output voltage regulation | 5% |
|---|
| Automatic Voltage Regulation (AVR) | Yes |
|---|
| Surge energy rating | 680 J |
|---|
| Response time | 6 ms |
|---|
| Noise level | 45 dB |
|---|
| Audible alarm(s) | Yes |
|---|
| Audible alarm modes | Alarm when on battery |
|---|

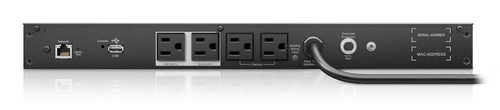

Ports & interfaces
| AC outlet types | NEMA 5–15R |
|---|
| Power plug | NEMA 5-15P |
|---|
| AC outlets quantity | 4 AC outlet(s) |
|---|
| USB port | Yes |
|---|
| USB 2.0 ports quantity | 1 |
|---|
| USB port type | USB Type-A |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
Battery
| Battery technology | Lithium-Ion (Li-Ion) |
|---|
| Battery life (max) | 10 year(s) |
|---|
| Battery recharge time | 3 h |
|---|
Design
| Form factor | Rackmount |
|---|
| Rack capacity | 1U |
|---|
| Product colour | Black, Silver |
|---|
| LED indicators | Yes |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -15 - 45 °C |
|---|
| Operating relative humidity (H-H) | 10 - 90% |
|---|
| Storage relative humidity (H-H) | 10 - 90% |
|---|
| Operating altitude | 0 - 1968 m |
|---|
| Non-operating altitude | 0 - 14763 m |
|---|
Certificates
| Compliance certificates | RoHS |
|---|
| Certification | CSA C22.2 NO. 107.3, cULus, FCC 15 Class A, NOM, UL 1778, UL 1973 |
|---|
Packaging content
| Rack mount kit | Yes |
|---|
| Cables included | USB cable |
|---|
| Quick installation guide | Yes |
|---|
Weight & dimensions
| Width | 432 mm |
|---|
| Depth | 232 mm |
|---|
| Height | 44 mm |
|---|
| Weight | 4.22 kg |
|---|
Packaging data
| Package width | 590 mm |
|---|
| Package depth | 337 mm |
|---|
| Package height | 168 mm |
|---|
| Package weight | 6.49 kg |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
