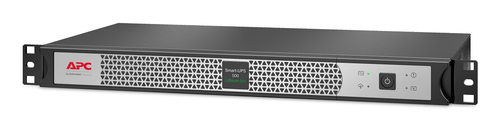

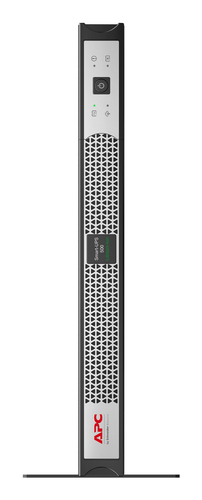

APC SCL500RM1UCUS uninterruptible power supply (UPS) Line-Interactive 0.5 kVA 400 W 4 AC outlet(s)
Part number SCL500RM1UCUS
APC SMART-UPS LITHIUM ION 500VA SHORT DEPTH RM 120V SMARTCONNECT TAA-COMPLIANT
Line-Interactive
0.5 kVA 400 W
Waveform: Sine
4 AC outlet(s)
Lithium-Ion (Li-Ion)
Rackmount Black
Manufacturer
APC BY SCHNEIDER ELECTRIC
Part number
SCL500RM1UCUS
Condition
New
Category
Power & Rack Equipment › Power Equipment
1GPA category
Hardware
Overview
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 500VA line interactive 1U short depth rackmount UPS with Lithium-ion battery provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 4 NEMA5-15R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SCL UPS has a 5-year warranty on the UPS and Lithium-ion battery. The Smart-UPS is compliant with the Trade Agreements Act (TAA) requirements.
Specifications
Features
UPS topology
Line-Interactive
Output power capacity
0.5 kVA
Output power
400 W
Waveform
Sine
Input frequency
50/60 Hz
Output frequency
50/60 Hz
Surge energy rating
680 J
Output voltage Total Harmonic Distortion (THD)
5%
Noise level
55 dB
Ports & interfaces
AC outlet types
NEMA 5-15R
AC outlets quantity
4 AC outlet(s)
USB port
Yes
Serial interface
Yes
SmartConnect port
Yes
Battery
Battery technology
Lithium-Ion (Li-Ion)
Battery life (max)
10 year(s)
Design
Form factor
Rackmount
Rack capacity
1U
Cable length
1.8 m
Product colour
Black
Display type
LCD
LED indicators
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Non-operating altitude
0 - 7620 m
Technical details
Battery included
Yes
Certificates
Compliance certificates
cULus
Packaging content
Cables included
USB cable
Manual
Yes
Weight & dimensions
Width
432 mm
Depth
232 mm
Height
44 mm
Weight
4.18 kg
Packaging data
Package width
337 mm
Package depth
590 mm
Package height
168 mm
Package weight
6 kg
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
