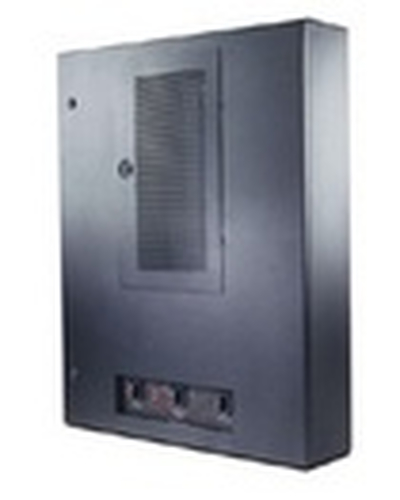

APC SBPSU10K30FC1M1-WP power distribution unit (PDU) Black
Part number SBPSU10K30FC1M1-WP
SMART-UPS VT 10-30KVA 208V BYPASS PANEL W/42 POS. DIST PANEL
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SBPSU10K30FC1M1-WP
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
APC Smart-UPS VT Maintenance Bypass Panel 10-30kVA 208V Wall Mount w/42 Pos. Distribution Panel
- APC Service Bypass Panel;
- Input: 208V 3PH;
- Input Connections: Hard Wire 5-wire (3PH + N + G);
- Output: 120V, 208V 3PH;
- Output Connections: Hard Wire 5-wire (3PH + N + G).
Specifications
| Mounting | Vertical |
|---|---|
| Product colour | Black |
| Output connections | 3PH + N + G |
|---|
| Nominal input voltage | 208 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Load capacity | 30000 VA |
| Maximum input current per phase | 92 A |
| Maximum total current draw per phase | 83.3 A |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Width | 949 mm |
|---|---|
| Depth | 197 mm |
| Height | 749 mm |
| Weight | 54.5 kg |
| Package weight | 59.1 kg |
|---|---|
| Package width | 1051 mm |
| Package depth | 228 mm |
| Package height | 927 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
