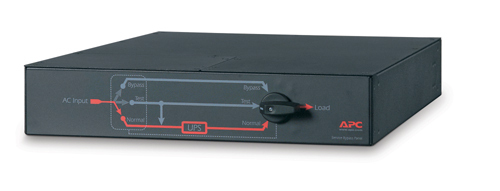

APC Service Bypass Panel- 200/208/240V power distribution unit (PDU) Black
Part number SBP6KRMT2U
APC SVC BYPASS PANEL FOR 200/ 208/240V SYMMETRA 2-6KVA (1)NO RTN
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SBP6KRMT2U
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
19 inch Rack-Mountable
Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternate power source.
Quick Transfer Rate
Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.
Wrap Around System Bypass
(3) Breaker maintenance bypass panel to isolate the UPS from the critical load
Meets UL Requirements
Specifications
| Product colour | Black |
|---|
| Input connection type | Hard Wire 3-wire (2PH + G), NEMA L6-30P |
|---|---|

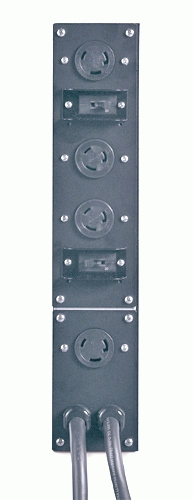

| Output connections | 2x NEMA L6-20R 1x NEMA L6-30R |
| Cable length | 3.05 m |
|---|
| Load capacity | 6000 VA |
|---|---|
| Maximum input current per phase | 30 A |
| Maximum total current draw per phase | 30 A |
| Certification | CSA,EN 60950,GOST,IEC 60950,IEC 60950,UL 1778 |
|---|
| Operating temperature (T-T) | -20 - 50 °C |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Width | 432 mm |
|---|---|
| Depth | 650 mm |
| Height | 89 mm |
| Weight | 13.6 kg |
| Package weight | 24.5 kg |
|---|---|
| Package width | 610 mm |
| Package depth | 991 mm |
| Package height | 203 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
