Products › Power & Rack Equipment
APC BY SCHNEIDER ELECTRIC
APC Service Bypass Panel- 230V, 32A, BBM, IEC320 C20/HW input, IEC-320 Output- (2) C19 (8) C13
Part number SBP5000RMI2U
SVC BYPASS PANEL 230V 32A BBM IEC320 C20/HW INPUT IEC-320 OUTPUT
- Supports up to 32A, suitable for high-demand applications

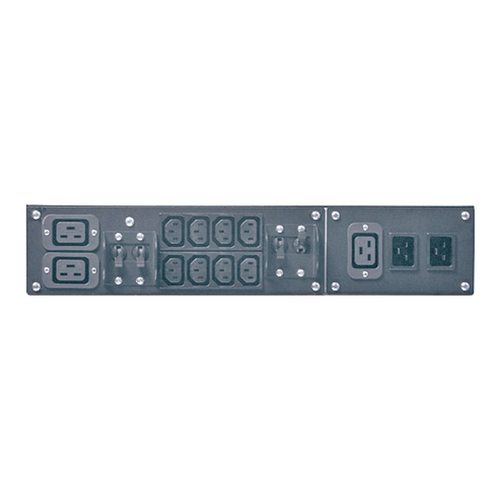

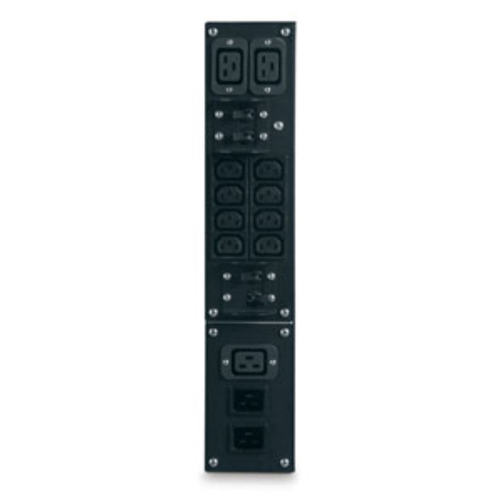

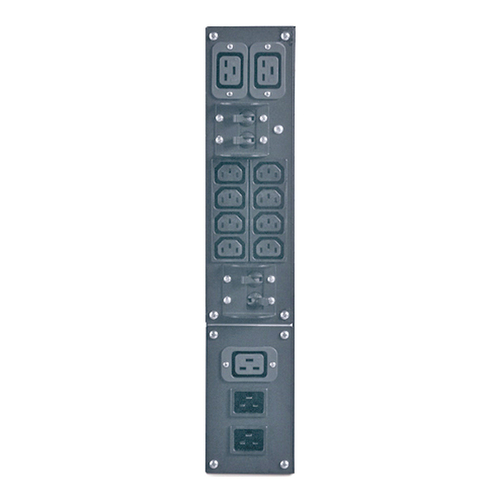

- Provides 2 C19 and 8 C13 output connectors for flexible power distribution
- Features a bypass switch for safe maintenance
- Designed for rack installation, saving space in data centers
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SBP5000RMI2U
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview

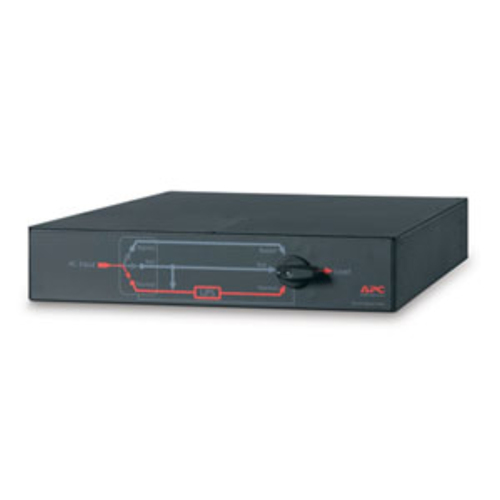

The APC SBP5000RMI2U Service Bypass Panel is a reliable solution designed to ensure uninterrupted power to your critical equipment during UPS maintenance or upgrades. Engineered for compatibility with APC Smart-UPS and Smart-UPS On-Line, this panel requires IEC C20 input and offers (8) IEC C13, (2) IEC C19 outlets. The panel is 2U in height with 230V input and output voltage. This panel comes with a 2-year warranty.
Specifications
| Rack capacity | 2U |
|---|---|
| Country of origin | China |
| Input connections | IEC 60320 C20 |
|---|
| AC input voltage | 230 V |
|---|---|
| AC output voltage | 230 V |
| Compliance certificates | RoHS, REACH, WEEE |
|---|---|
| Certification | CSA; GOST |
| Operating temperature (T-T) | -20 - 50 °C |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
| Width | 432 mm |
|---|---|
| Depth | 660 mm |
| Height | 89 mm |
| Weight | 11.4 kg |
| Sustainable packaging | No |
|---|---|
| Packaging recycled materials | Recycled cardboard |
| SCIP number | 7a19864b-8bf5-40ac-85e8-7678b0910185 |
| Mounting | front |
| Preferred mounting position | lower |
| Take-back system | No |
| Packaging without single use plastic | No |
| Customs product code (TARIC) | 8537109899 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
