Overview

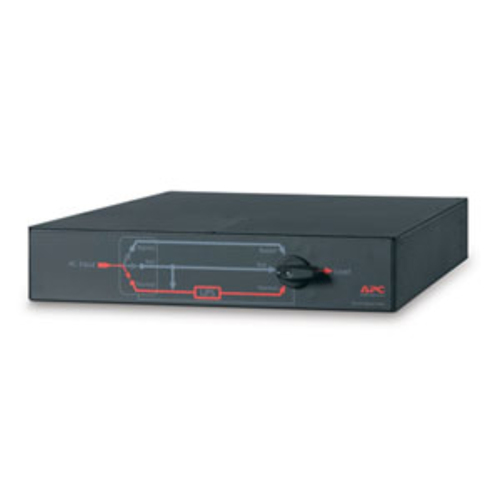

The APC Service Bypass Panel supports output voltage of 100V, 120V,and 230V. It features a 2U rack-mount design and is rack mountable. It includes rack mounting brackets and a user manual.
Specifications
Features
| Rack capacity | 2U |
|---|
| Country of origin | China |
|---|
Ports & interfaces
| Output connections | hard wire 3-wire (H N + E) for 1 zone(s) |
|---|
Power
| Maximum current | 24 A |
|---|
| AC input voltage | 100 / 120 / 230 V |
|---|
| AC output voltage | 100 / 120 / 230 V |
|---|
Certificates
| Compliance certificates | RoHS, REACH, WEEE |
|---|
| Certification | CSA,EN 60950,GOST,IEC 60950,UL 1778,VDE |
|---|
Operational conditions
| Operating temperature (T-T) | -20 - 50 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95% |
|---|
Weight & dimensions
| Width | 432 mm |
|---|
| Depth | 635 mm |
|---|
| Height | 89 mm |
|---|
| Weight | 12 kg |
|---|
Technical details
| Sustainable packaging | No |
|---|
| Preferred mounting position | no preference |
|---|
| Take-back system | No |
|---|
| Packaging without single use plastic | No |
|---|
Logistics data
| Customs product code (TARIC) | 8536508000 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
