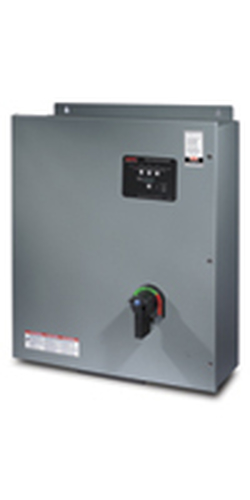

APC SurgeArrest Panelmount 208/120V 160KA Grey 208 V
Part number PMF4DS-A
SURGEARREST PANELMOUNT 208/120V 160KA W/ SURGE COUNTER MODULAR
- 208 V
- 160000 A
- EMI/RFI noise filtering 30 dB
- Grey
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- PMF4DS-A
- Term
- Per Ingram SKU U43381
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
SurgeArrest Panelmount 208/120V 160KA w/ Disconnect & Surge Counter
High quality TVSS for datacenters, industrial facilities and commercial buildings.
Alarm contacts
Enables remote monitoring of TVSS alarm status.
Replaceable individual phase modules
Significantly reduces the time to repair a damaged surge protector, minimizing the time that critical loads are unprotected from transients.
Protection Working Indicator
SurgeArrest will warn you if its circuitry has been damaged by heavy strike or power line surge and it is unable to provide 100% protection. If still under warranty, APC will then replace your damaged SurgeArrest free of charge.
Lightning and Surge Protection
To prevent damage to your equipment from power surges and spikes.
Noise Filtering
120kA SurgeArrest models contain EMI/RFI filtering to reduce line noise that can cause data loss and keyboard errors. 40kA and 80kA units do not contain noise filtering components, so they can be used with powerline networking systems (X10, HomePlug, PLC, etc.).
Maximum surge current ratings
40kA, 80kA and 120kA per phase maximum surge current ratings, for all your residential, commercial and individual equipment protection needs.
Catastrophic Event Protection
SurgeArrest Panelmount SPDs are equipped with fuses and thermal disconnects that react quickly to protect against dangerous high and low current wiring faults as well as other catastrophic surge events. These panelmount SPDs are passive, and continue to allow power through to your home or building if any of the surge components are damaged.
Status Indicator LED's
LED status indicators for each phase and an audible alarm provide immediate failure notification when suppression circuitry has been damaged by a heavy strike or surge.
Physical Size
For easy installation inside your circuit breaker panel (40kA model) or next to your power distribution panels. (80kA and 120 kA models)
Chase nipple connection
Allows for mounting of the PM2X units rigidly to the side of your panelboard.
Specifications
| Nominal input voltage | 208 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Peak current, normal mode | 160000 A |
| Peak current, common mode | 80000 A |
| Product colour | Grey |
|---|---|
| EMI/RFI noise filtering | Yes |
| EMI/RFI noise filtering | 30 dB |
| Response time | 0.000001 ms |
| Wall mountable | Yes |
| Weight | 16.8 kg |
|---|---|
| Width | 418 mm |
| Depth | 152 mm |
| Height | 559 mm |
| Operating temperature (T-T) | -20 - 65 °C |
|---|---|
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Certification | UL 1283,UL 1449,cUL |
|---|
| LED indicators | Yes |
|---|---|
| Audible alarm(s) | Yes |
| Packaging net weight | 18.64 kg |
|---|---|
| Package width | 490 mm |
| Package depth | 305 mm |
| Package height | 635 mm |
| Input connections | 5-wire(3PH+N+G) |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
