Products › Power & Rack Equipment

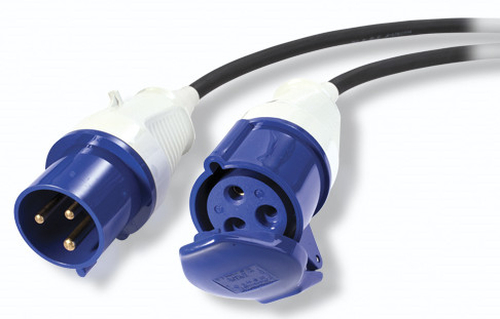

APC Modular IT Power Distribution Cable 12 m
Part number PDX332IEC-1200
1200CM MODULAR IT POWER DISTRIBUTION CABLE EXT 3 WIRE 32A
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- PDX332IEC-1200
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
APC Modular Power Accessories , Input: 230V , Input Connections: IEC 309 32A 2P+E , Output: 230V , Output Connections: IEC 309 32A (2P+E).
- Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
- System mobility
PDU equipment can easily be relocated to accommodate a changing data center environment.
- Multiple distribution options
Superior design flexibility enables a wide range of customer requirements to be addressed.
- Meets UL Requirements
- High Power Density
- Safety
Enhance user safety with isolation at all touch points and with positive locking mechanisms that reduce the risk of accidental disconnection
- Power monitoring
Measure and monitor power consumption and usage with branch circuit monitoring and output metering, which are included at no extra cost
- Quick status information LEDs
Access status information about the performance of the Power Distribution Module
- Toolless installation of breakers
Install factory-assembled Power Distribution Modules in under ten minutes - no tools are required
- Global product offering
Standardization of the power distribution system across all corporate locations is easy - a variety of 1-phase and 3-phase Power Distribution Modules address the unique power requirements of data centers around the world
Specifications
| Cable length | 12 m |
|---|
| Input voltage | 230 V |
|---|---|
| Input current | 32 A |
| Weight | 4.99 kg |
|---|
| Package width | 432 mm |
|---|---|
| Package height | 152 mm |
| Package weight | 5.9 kg |
| Output connections | 1 x IEC 309 32A (2P+E) |
|---|---|
| Input connection type | IEC 309 32A 2P+E |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
