APC BY SCHNEIDER ELECTRIC

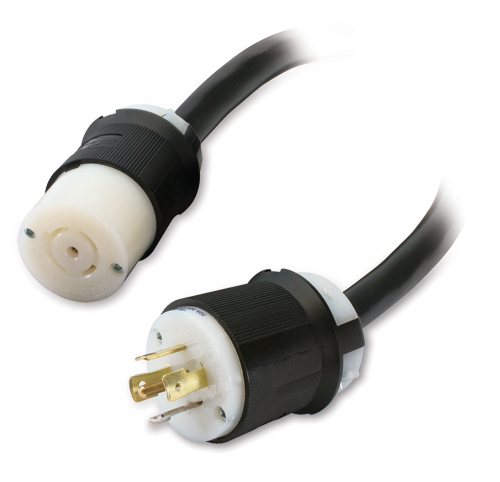

APC 6' CABLE EXTENDER 5-WIRE #10 AWG, UL WITH L21-20R/P
Part number PDW6L21-20XC
6 CABLE EXTENDER 5-WIRE #10 AWG UL WITH L21-20R/P
- 1.83 m
- NEMA L21-20P Straight Male
- NEMA L21-20R Straight Female
- Black
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- PDW6L21-20XC
- Condition
- New
- Category
- Cables › Power Cables
- 1GPA category
- Hardware
Overview
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Wide Range of Applications
Configure-to-order process allows APC to configure, install, and test complete system before shipping
Specifications
| Product colour | Black |
|---|---|
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Cable length | 1.83 m |
| Connector 1 | NEMA L21-20P |
| Connector 2 | NEMA L21-20R |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 10 |
| Input voltage | 200 - 240 V |
|---|---|
| Input current | 20 A |
| Certification | UL |
|---|
| Width | 51 mm |
|---|---|
| Depth | 1829 mm |
| Height | 64 mm |
| Weight | 960 g |
| Package width | 305 mm |
|---|---|
| Package depth | 445 mm |
| Package height | 102 mm |
| Package weight | 1.18 kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
