Products › Power & Rack Equipment
APC BY SCHNEIDER ELECTRIC

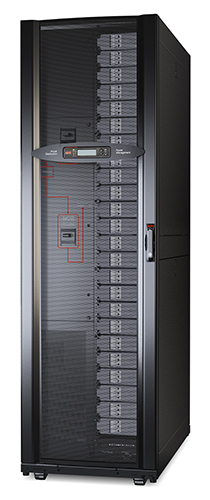

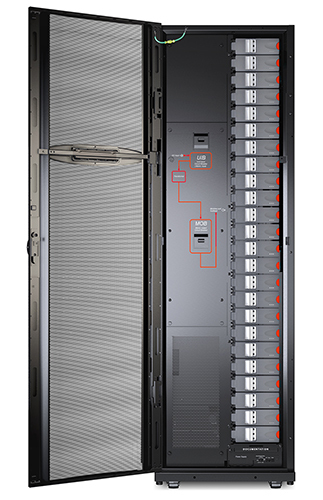

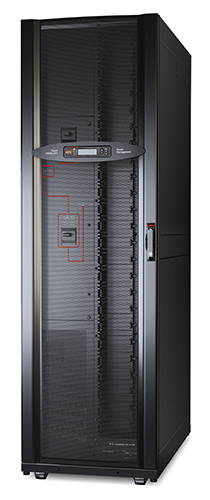

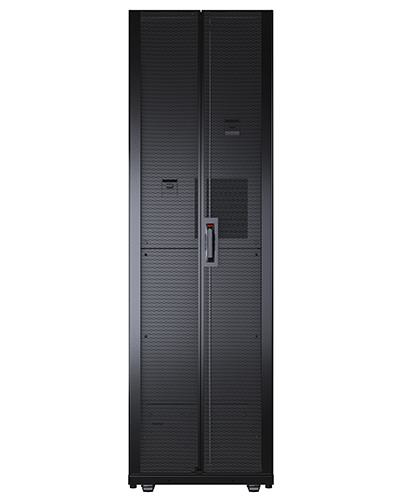

APC PDPM150G6F power distribution unit (PDU) Black
Part number PDPM150G6F
MODULAR PDU 480:208VAC 144KW ISOLATION TRANSFORMER 72POLE
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- PDPM150G6F
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Modular Power Distribution
A fully scalable power distribution system that cost-effectively provides high levels of availability and enables the quick addition of circuits and cord-sets.
Specifications
| PDU types | Modular |
|---|---|
| Mounting | Vertical |
| Product colour | Black |
| Nominal input voltage | 480 V |
|---|---|
| AC input frequency | 60 Hz |
| Maximum current | 178 A |
| Nominal output voltage | 208 V |
| Output voltage | 208 V |
| Load capacity | 144000 VA |
| Maximum input current per phase | 178 A |
| Power protection features | Overload |
| Certification | cUL, CSA, OSHPD, UL 60950-1 |
|---|
| Operating temperature (T-T) | -5 - 40 °C |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 2952.6 m |
| Non-operating altitude | 0 - 15000 m |
| Width | 600 mm |
|---|---|
| Depth | 1069 mm |
| Height | 2007 mm |
| Weight | 836 kg |
| Package weight | 882 kg |
|---|---|
| Package width | 1016 mm |
| Package depth | 1219 mm |
| Package height | 2153 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
