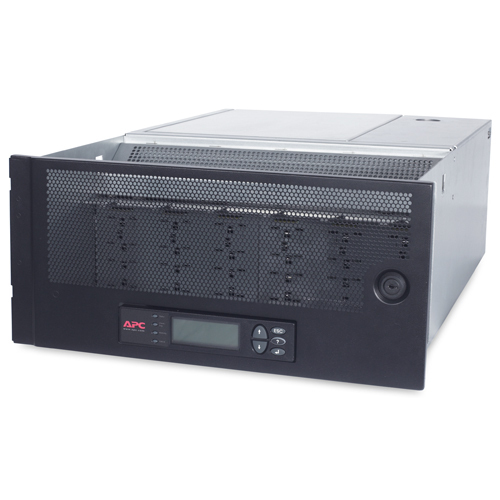

APC Modular Rackmounted IT 138kW power distribution unit (PDU) 5U
Part number PDPM138H-5U
MODULAR RACK DISTRIBUTION PANEL 138KVA 200A 400V 18POLE 5U
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- PDPM138H-5U
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
System mobility
PDU equipment can easily be relocated to accommodate a changing data center environment.
Multiple distribution options
Superior design flexibility enables a wide range of customer requirements to be addressed.
Meets UL Requirements
High Power Density
Protection
UL-listed Touch-safe backplane
Adding Power Distribution Modules requires no hot work; one trained user can safely add new modules without removing power to the existing PDU load
Multiple distribution options
Superior design flexibility enables a wide range of customer requirements to be addressed.
Toolless installation of breakers
Install factory-assembled Power Distribution Modules in under ten minutes - no tools are required
Safety
Enhance user safety with isolation at all touch points and with positive locking mechanisms that reduce the risk of accidental disconnection
Specifications
| Rack capacity | 5U |
|---|
| Nominal input voltage | 400 V |
|---|---|
| Nominal output voltage | 400 V |
| Maximum total current draw per phase | 200 A |
| Width | 483 mm |
|---|---|
| Depth | 711 mm |
| Height | 229 mm |
| Weight | 30.1 kg |
| Package weight | 34 kg |
|---|---|
| Package width | 610 mm |
| Package depth | 889 mm |
| Package height | 406 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
