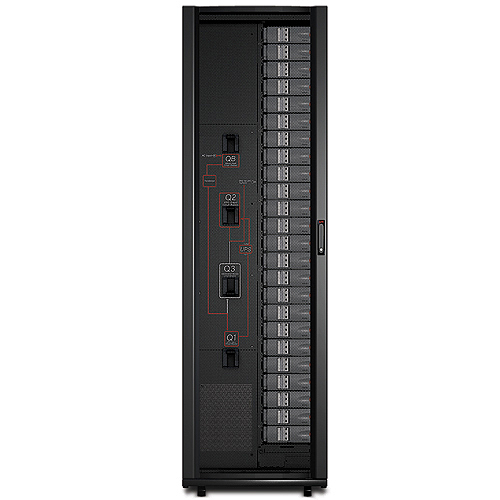

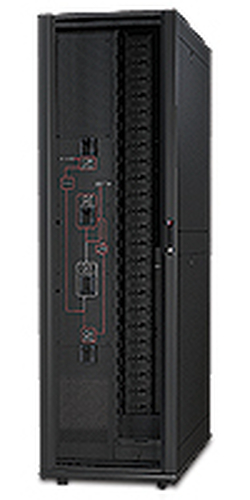

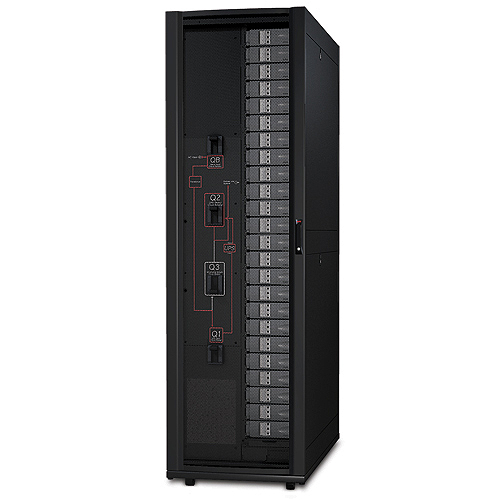

APC 100kW Modular Power Distribution Unit power distribution unit (PDU) Black
Part number PDPM100F6F-M
100KVA MODULAR PDU ISOLATION TRANSFORMER 208:208V 72 POLE MBP
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- PDPM100F6F-M
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
A fully scalable power distribution system that cost-effectively provides high levels of availability and enables the addition of circuits and cord-sets without requiring you to schedule outages or conduct dangerous hot work.
UL-listed Touch-safe backplane:
Adding Power Distribution Modules requires no hot work; one trained user can safely add new modules without removing power to the existing PDU load
Specifications
| PDU types | Basic |
|---|---|
| Product colour | Black |
| Input connection type | 4-wire (3PH + G) |
|---|---|
| Output connections | 1 x 4-wire (3PH + N) |
| LED indicators | Yes |
|---|
| Nominal input voltage | 208 V |
|---|---|
| AC input frequency | 60 Hz |
| Nominal output voltage | 120-208 V |
| Load capacity | 100000 VA |
| Maximum input current per phase | 337 A |
| Maximum total current draw per phase | 278 A |
| Compliance certificates | RoHS |
|---|---|
| Certification | UL |
| Width | 600 mm |
|---|---|
| Depth | 1070 mm |
| Height | 2007 mm |
| Weight | 818.2 kg |
| Package weight | 863.6 kg |
|---|---|
| Package width | 1016 mm |
| Package depth | 1220 mm |
| Package height | 2150 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
