APC BY SCHNEIDER ELECTRIC

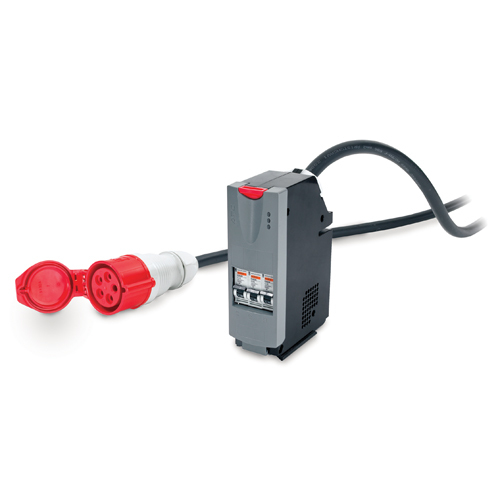

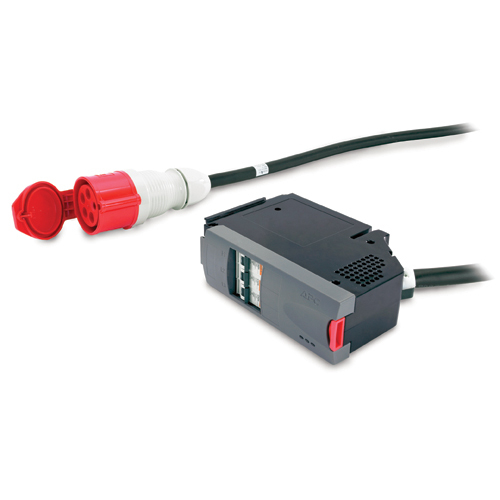

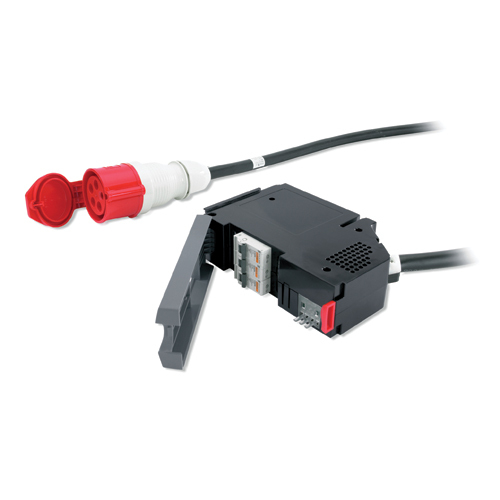

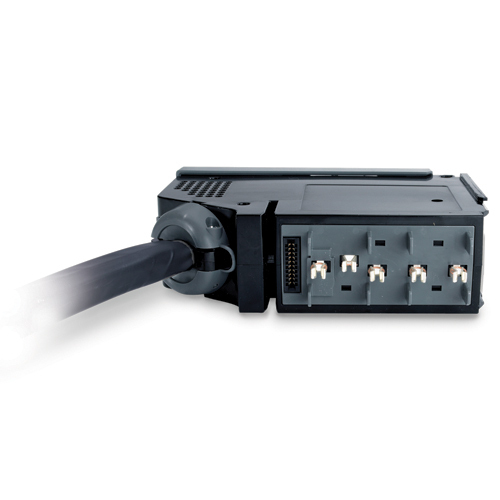

APC PDM3520IEC309-1040 power distribution unit (PDU) Black
Part number PDM3520IEC309-1040
IT POWER DISTRIBUTION MODULE 3POLE 5 WIRE 20A 240V IEC309 1040CM
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- PDM3520IEC309-1040
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
A touch-safe Power Distribution Module (including circuit breaker, power cord, power connection, and circuit monitoring) that eliminates the need for hot work or shutdowns during expansion of the power distribution system.
Includes: Installation guide
Specifications
| Product colour | Black |
|---|
| Input connection type | IEC 309 |
|---|---|
| Output connections | (1) IEC 309 |
| Cable length | 10.4 m |
|---|
| Nominal input voltage | 230 V |
|---|---|
| AC input frequency | 60 Hz |
| Nominal output voltage | 230 V |
| Maximum total current draw per phase | 20 A |
| Certification | UL, RoHS |
|---|
| Width | 445 mm |
|---|---|
| Depth | 406 mm |
| Height | 127 mm |
| Weight | 6.27 kg |
| Package weight | 6.82 kg |
|---|---|
| Package width | 445 mm |
| Package depth | 406 mm |
| Package height | 127 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
