APC BY SCHNEIDER ELECTRIC

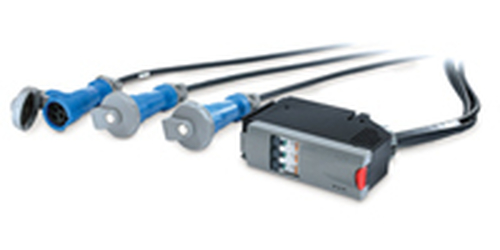

APC IT Power Distribution Module 3x1 Pole 3 Wire 32A 3xIEC309 480cm, 540cm, 600cm
Part number PDM1332IEC-3P-2
IT POWER DISTRIBUTION MODULE 3X1POLE 3WIRE 32A 3XIEC309 480CM
- Power distribution module with three 1-pole breakers
- 32A breakers
- 480cm, 540cm, and 600cm output cables
- Warranty: 1 year
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- PDM1332IEC-3P-2
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Factory assembled and tested Power Distribution Modules include circuit breaker, power cord, power connection, and circuit monitoring. Auto-detection of modules by the Modular PDU minimizes installation time.
Specifications
| PDU types | Metered, Monitored |
|---|---|
| Product colour | Black |
| AC outlets quantity | 3 AC outlet(s) |
|---|
| Nominal input voltage | 400 V |
|---|---|
| AC input frequency | 50 Hz |
| Nominal output voltage | 230 V |
| Maximum input current per phase | 32 A |
| Maximum total current draw per phase | 32 A |
| Compliance certificates | RoHS |
|---|---|
| Certification | CE,VDE |
| Width | 432 mm |
|---|---|
| Depth | 152 mm |
| Height | 152 mm |
| Weight | 6.39 kg |
| Weight (imperial) | 6.39 kg (14.1 lbs) |
| Dimensions (W x D x H) (imperial) | 432.1 x 152 x 152 mm (17 x 5.98 x 5.98") |
| Package weight | 730 g |
|---|---|
| Package width | 432 mm |
| Package depth | 152 mm |
| Package height | 152 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
