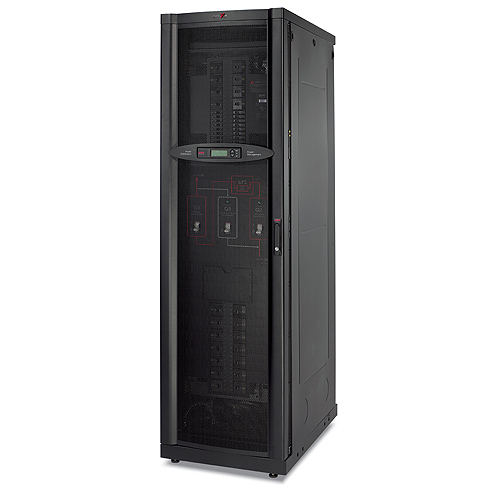

APC InfraStruXure® PDU 40kW 480V/208V W/ MBP power distribution unit (PDU) Black
Part number PD40G6FK1-M
APC PDU 480V/208V W/ MBP
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- PD40G6FK1-M
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
-Includes: Installation guide, User Manual.
-Load Test Port.
-Most sub-feed breakers per service area.
-Top and bottom cable entry (standard).

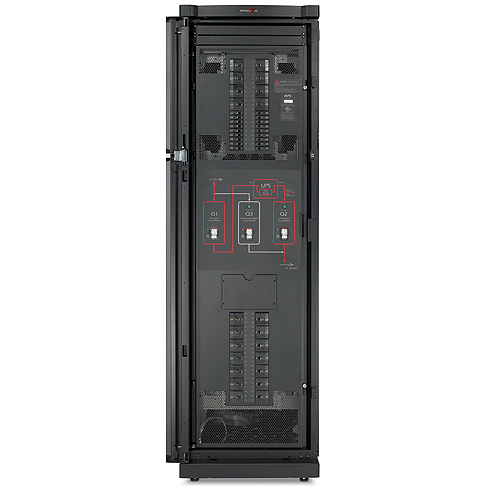

-Two 42 Postion Power Panels.

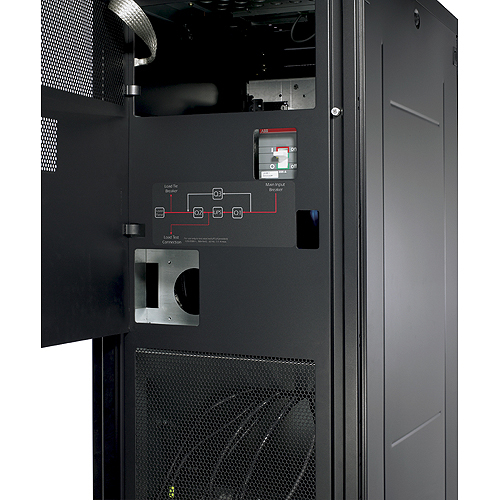

-Wrap Around System Bypass.
Specifications
| Product colour | Black |
|---|
| Nominal input voltage | 480 V |
|---|---|
| AC input frequency | 60 Hz |
| Maximum input current per phase | 67 A |
| Maximum total current draw per phase | 139 A |
| Certification | cUL, UL 60950. |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Width | 610 mm |
|---|---|
| Depth | 914 mm |
| Height | 2057 mm |
| Weight | 580 kg |
