Products › Power & Rack Equipment
APC BY SCHNEIDER ELECTRIC

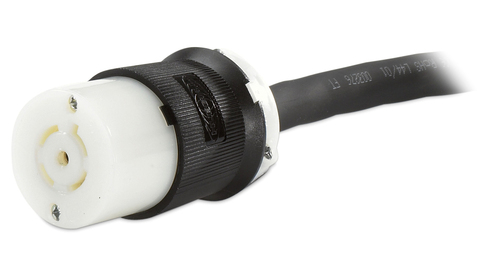

APC PBP4A13L2120F power cable Black, White 0.9 m NEMA L21-20R
Part number PBP4A13L2120F
PB BUSWAY TAP OFF UNIT 20A 208Y/120V 1X3 POLE 5 WIRES 3FT
- 0.9 m
- NEMA L21-20R
- Black, White
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- PBP4A13L2120F
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Presentation
Factory-assembled and tested, the tap off units house standard circuit breakers and a pre-terminated cord set. No tools required for installation on any iBusway for Data Center busway straight section.
Specifications
| Product colour | Black, White |
|---|---|
| Cable length | 0.9 m |
| Connector 2 | NEMA L21-20R |
| AC input frequency | 60 Hz |
|---|---|
| Maximum current | 20 A |
| Operating temperature (T-T) | -10 - 40 °C |
|---|---|
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 4572 m |
| Compliance certificates | UL, cUL |
|---|
| Width | 229 mm |
|---|---|
| Depth | 140 mm |
| Height | 305 mm |
| Weight | 10.4 kg |
| Package width | 851 mm |
|---|---|
| Package depth | 359 mm |
| Package height | 359 mm |
| Package weight | 16.4 kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
