APC BY SCHNEIDER ELECTRIC

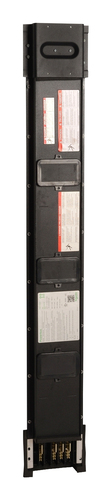

APC PBCE4A100AST048B busbar part/accessory Black 600 V 1 pc(s)
Part number PBCE4A100AST048B
PB BUSWAY STRAIGHT DISTRIBUTION 4FT 100A
- Up to 5 conductor bars for electrical efficiency
- 50% integral ground standard feature
- 10 plug in openings for 10ft section; 3 plug in openings for 4ft section
- No special tools to connect busway joints or plug in units
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- PBCE4A100AST048B
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Powerbus busway delivers scalable and flexible overhead power distribution. Simple modularity minimizes unintended downtime. Units are available in 100A, 225A, and 400A as well as up to 600V maximum rating. Powerbus busway uses the same Plug-in Units across all busway ampacities. This unit is Plug-in unit straight length that is rated at 100A. The busbar configuration for this tap box is 4A. All busway rating are listed to UL 857 Busway Standard for Safety.
Specifications
| Product colour | Black |
|---|---|
| Operating voltage | 600 V |
| Maximum current | 100 A |
| Quantity per pack | 1 pc(s) |
| International Protection (IP) code | IP40 |
| Package width | 177 mm |
|---|---|
| Package depth | 1220 mm |
| Package height | 67 mm |
| Package weight | 5.9 kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
