APC MDC42SX5KVAT uninterruptible power supply (UPS) Line-Interactive 5 kVA
Part number MDC42SX5KVAT
MICRO DC 42U SX 5KVA 208V
- It comes pre-assembled, which simplifies deployment and reduces installation time
- It includes two 5kVA UPS units, providing reliable power backup
- The unit is equipped with NetBotz 250 for enhanced security
- Includes two switched rack PDUs, allowing for effective power distribution
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- MDC42SX5KVAT
- Condition
- New
- Category
- Power & Rack Equipment › Rack Equipment
- 1GPA category
- Hardware
Overview

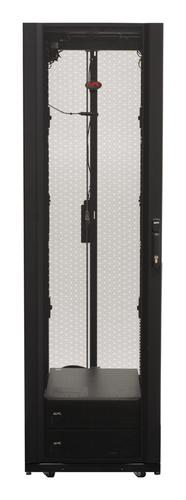

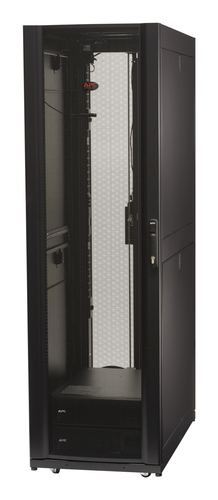

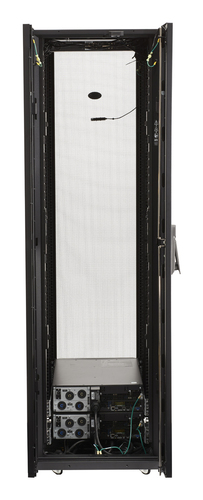

It is an Ecostruxure Micro Data Center with a 42U SX rack, providing 5kVA of power at 208V and 60 Hz. It comes pre-assembled with a shock-packaged rack, two UPS units, two switched rack PDUs, a NetBotz 250 with rack access handles, a temperature or humidity probe, blanking panels, and a brush strip. It weighs 281.23kgs and the static permissible load is 3000lbs.
Specifications
| UPS topology | Line-Interactive |
|---|---|
| Output power capacity | 5 kVA |
| Input operation voltage (min) | 208 V |
| Input frequency | 60 Hz |
| Rack capacity | 42U |
|---|---|
| Product colour | Black |
| Width | 600 mm |
|---|---|
| Depth | 1070 mm |
| Height | 1991 mm |
| Weight | 281.2 kg |
| Package width | 1321 mm |
|---|---|
| Package depth | 1105 mm |
| Package height | 2179 mm |
| Package weight | 39.7 kg |
| Country of origin | China |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
