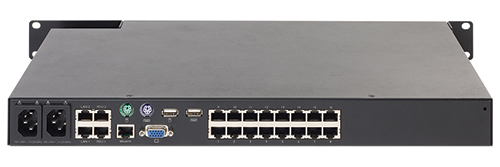

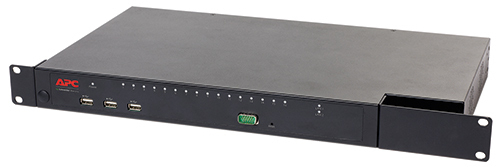

APC KVM2116P KVM switch Rack mounting Black
Part number KVM2116P
KVM 2G ENTERPRISE DIGITAL/IP 2 REMOTE USERS 1 LOCAL USER 16PORTS
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- KVM2116P
- Condition
- New
- Category
- Accessories › Phone & Cellular Accessories
- 1GPA category
- Hardware
Overview
Availability
Out-of-band management
Troubleshoot servers and diagnose problems in lieu of a working operating system with POST and BIOS-level access to servers.
Agility
Scalable Architecture
Cascade multiple KVM switches for a modular solution that supports multiple platforms, improving flexibility and simplifying future expansion. Please see the user's manual for specific cascading capabilities.
Multi-platform Support
Windows, Sun, Unix and Linux compatible.
Total Cost of Ownership
Occupies 1U of rack space
Conserve valuable rack space in the data center.
Specifications
| Keyboard port type | USB, PS/2 |
|---|---|
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
| DC-in jack | Yes |
| Rack mounting | Yes |
|---|---|
| Rack capacity | 1U |
| Product colour | Black |
| Certification | cUL,C-tick,CE,FCC 15 A,GOST,ICES-003,UL-AR,UL 60950-1,VCCI A,VDE RoHS,REACH |
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width | 424 mm |
|---|---|
| Depth | 238 mm |
| Height | 42 mm |
| Weight | 3.6 kg |
| Package dimensions (WxDxH) | 619 x 380 x 146 mm |
|---|---|
| Package weight | 5.1 kg |
| Connectivity technology | Wired |
|---|---|
| Ports quantity | 16 |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
