Overview

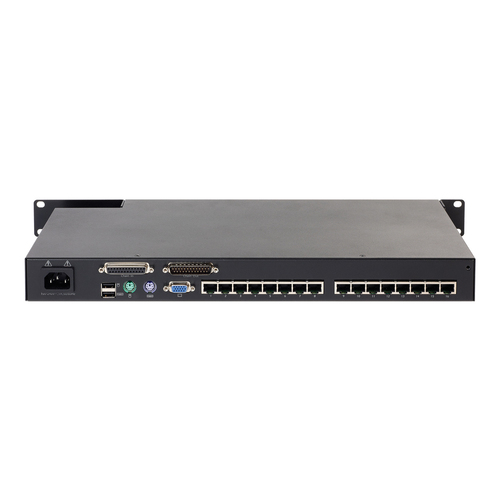

The APC KVM 2G Analog Switch supports one local user and sixteen ports. It is a 1U rack-mountable device. It includes a CD with software, installation guide, and rack mounting brackets. The switch supports multiple platforms and hot-pluggable operation.
Specifications
Ports & interfaces
| Number of computers controlled | 16 |
|---|
| Keyboard port type | PS/2 |
|---|
| Mouse port type | PS/2 |
|---|
| Video port type | VGA |
|---|
| VGA (D-Sub) ports quantity | 1 |
|---|
| USB 2.0 ports quantity | 2 |
|---|
| PS/2 ports quantity | 2 |
|---|
| Console port | RS-232 |
|---|
Performance
| Maximum resolution | 1600 x 1200 pixels |
|---|
| Number of users | 1 user(s) |
|---|
Design
| Rack mounting | Yes |
|---|
| Rack capacity | 1U |
|---|
| Product colour | Black |
|---|
| LED indicators | Yes |
|---|
| Certification | cUL listed; C-Tick; CE; EAC; TAA compliance; UL-AR; VCCI class A; VDE |
|---|
Display
| Built-in display | No |
|---|
Certificates
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
|---|
Sustainability
| Compliance certificates | RoHS, REACH, WEEE |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|
| Storage temperature (T-T) | -20 - 60 °C |
|---|
| Operating relative humidity (H-H) | 0 - 80% |
|---|
| Storage relative humidity (H-H) | 0 - 80% |
|---|
Weight & dimensions
| Width | 424 mm |
|---|
| Depth | 188 mm |
|---|
| Height | 43 mm |
|---|
| Weight | 2.4 kg |
|---|
Packaging data
| Package width | 619 mm |
|---|
| Package depth | 330 mm |
|---|
| Package height | 146 mm |
|---|
| Package weight | 3.9 kg |
|---|
Packaging content
| Manual | Yes |
|---|
Other features
| Connectivity technology | Wired |
|---|
| Ports quantity | 16 |
|---|
Technical details
| Sustainable packaging | No |
|---|
| Mounting | front |
|---|
| Preferred mounting position | no preference |
|---|
| Take-back system | No |
|---|
| Packaging without single use plastic | No |
|---|
Logistics data
| Harmonized System (HS) code | 85176200 |
|---|
| Customs product code (TARIC) | 8471800000 |
|---|
| Country of origin | Taiwan |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
