APC BY SCHNEIDER ELECTRIC

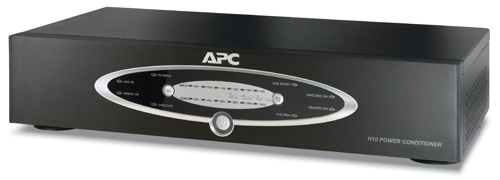

APC H Type AV Power Conditioners Black 12 AC outlet(s) 120 V 3 m

Part number H10BLK

AV BLACK 120V 1KVA H TYPE POWER CONDITIONER

Overview

Boost and Trim Automatic Voltage Regulation (AVR)

Eliminates voltage fluctuations as a source of AV signal degradation and component power-supply stress.

Isolated filter banks

Eliminates electromagnetic and radio frequency interference (EMI/RFI) as a source of audio-video signal degradation.

Dataline Surge Protection

Provides protection of connected equipment from power surges on the data lines.

Power conditioning

Protects connected loads from surges, spikes, lightning, and other power disturbances.

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Adjustable voltage sensitivity

Provides the ability to adapt the Power Conditioner for optimal performance in specific power environments or generator applications.

LCD display

Alpha-Numeric Display which displays system parameters and alarms.

LED status indicators

Quickly understand unit and power status with visual indicators.

Features
Product colour	Black

Technical details
Weight (imperial)	7.3 kg (16.1 lbs)

Weight & dimensions
Weight	7.32 kg
Cable length	3 m

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%

Certificates
Certification	CSA/FCC Part 15 Class B/FCC Part 68/Industry Canada/UL 1012/UL 1449/UL 498

Indication
LED indicators	Yes

Packaging data
Package width	518 mm
Package height	168 mm
