Overview

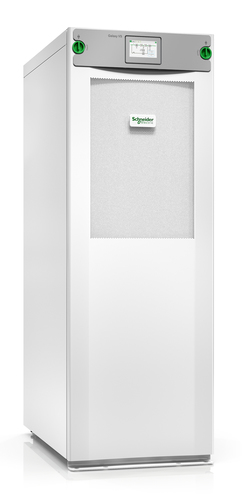

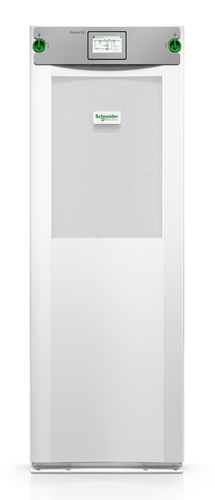

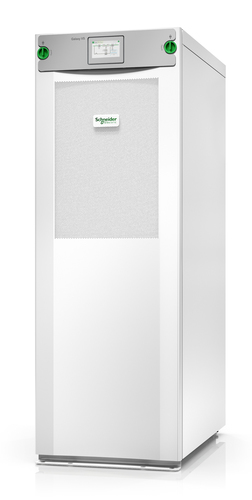

This Galaxy VS UPS GVSUPS60KHS is a highly efficient, easy-to-deploy 60kW, 400V 3-phase UPS. Brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Compact design, high-density technology and modular architecture keep total cost of ownership low and operational efficiency at the highest levels Galaxy VS reduces your energy losses by up to 66% with the patented ECOnversion mode – reaching up to 99% efficiency levels and delivering more energy savings than even our industry-leading 97% efficiency in normal operating mode. The UPS is EcoStruxure-connected to give you peace of mind with cloud-based remote monitoring and management via your smartphone. Includes 5x8 start-up service.
Specifications
Features
| UPS topology | Double-conversion (Online) |
|---|
| Output power capacity | 60 kVA |
|---|
| Output power | 60000 W |
|---|
| Waveform | Sine |
|---|
| Input operation voltage (min) | 340 V |
|---|
| Input operation voltage (max) | 460 V |
|---|
| Input frequency | 40/70 Hz |
|---|
| Output operation voltage (min) | 380 V |
|---|
| Output operation voltage (max) | 415 V |
|---|
| Output frequency | 50/60 Hz |
|---|
| Maximum current | 111 A |
|---|
| Heat dissipation | 5576.1 BTU/h |
|---|
| Efficiency | 97.1% |
|---|
| Input power factor | 0.99 |
|---|
| Crest factor | 2.5:1 |
|---|
| ECO mode | Yes |
|---|
| Output voltage Total Harmonic Distortion (THD) | 3% |
|---|
| Noise level | 65 dB |
|---|
| Audible alarm(s) | Yes |
|---|
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
|---|
Ports & interfaces
| SmartSlot | Yes |
|---|
| SmartConnect port | No |
|---|
Battery
| Battery technology | Lithium-Ion (Li-Ion) |
|---|
Design
| Form factor | Tower |
|---|
| Product colour | White |
|---|
| Display type | LCD |
|---|
| LED indicators | Yes |
|---|
| International Protection (IP) code | IP21 |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -25 - 55 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95% |
|---|
| Storage relative humidity (H-H) | 10 - 80% |
|---|
| Operating altitude | 0 - 984.3 m |
|---|
| Non-operating altitude | 0 - 15000 m |
|---|
Certificates
| Certification | CSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, FCC Part 15 Class A, IEC 60721-4-2 Level 2M2, UL 1778 5th edition |
|---|
Packaging content
| Management card included | Yes |
|---|
Weight & dimensions
| Width | 521 mm |
|---|
| Depth | 847 mm |
|---|
| Height | 1485 mm |
|---|
| Weight | 250 kg |
|---|
Packaging data
| Package width | 640 mm |
|---|
| Package depth | 990 mm |
|---|
| Package height | 1680 mm |
|---|
| Package weight | 275 kg |
|---|
Logistics data
| Harmonized System (HS) code | 85078000 |
|---|
| Warranty period | 1 year(s) |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
