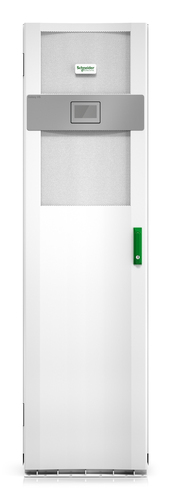

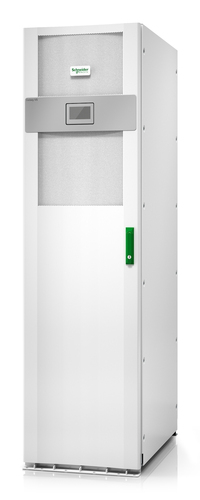

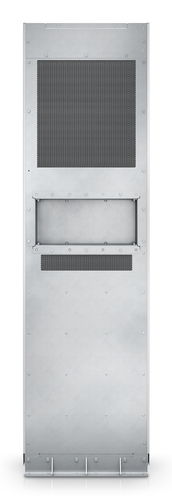

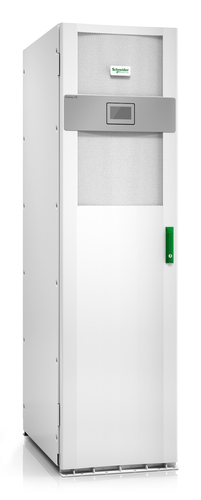

APC GVSUPS20KR0B5FS uninterruptible power supply (UPS) 20 kVA 20000 W
Part number GVSUPS20KR0B5FS
GALAXY VS UPS 20KW 208V WITH N+ GALAXY VS UPS 20KW 208V WITH N+1 PO
- Up to 99% efficient in eConversion mode
- Maximize availability with modular architecture
- Live Swap: Third party verified module replacement with no scheduled downtime
- Unlock resiliency and sustainability with access to EcoStruxure software
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- GVSUPS20KR0B5FS
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview

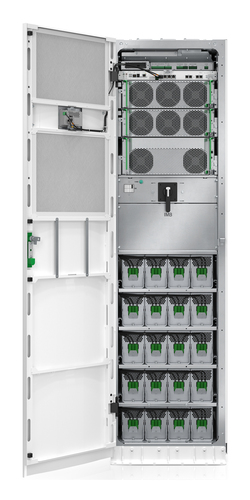

Highly efficient, easy-to-deploy 20 kW, 208 V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. This UPS is for up to 5 smart modular high capacity battery strings, but is supplied without batteries, so you can easily customize the battery runtime. Includes 5x8 start-up service and one additional power module for N+1 redundancy.
Specifications
| Output power capacity | 20 kVA |
|---|---|
| Output power | 20000 W |
| Waveform | Sine |
| Input operation voltage (min) | 177 V |
| Input operation voltage (max) | 239 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (min) | 208 V |
| Output frequency | 50/60 Hz |
| Maximum current | 72 A |
| Heat dissipation | 4019 BTU/h |
| Crest factor | 2.5:1 |
| Noise level | 68 dB |
| Battery technology | Lithium-Ion (Li-Ion) |
|---|
| Product colour | White |
|---|---|
| International Protection (IP) code | IP21 |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 10 - 80% |
| Operating altitude | 0 - 1000 m |
| Width | 521 mm |
|---|---|
| Depth | 847 mm |
| Height | 1485 mm |
| Weight | 250 kg |
| Warranty period | 1 year(s) |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
