APC GVSUPS10KR0B5FS uninterruptible power supply (UPS) 10 kVA 10000 W
Part number GVSUPS10KR0B5FS
GALAXY VS UPS 10KW 208V WITH N+ GALAXY VS UPS 10KW 208V WITH N+1 PO
Up to 99% efficient in eConversion mode
Maximize availability with modular architecture
Live Swap: Third party verified module replacement with no scheduled downtime
Unlock resiliency and sustainability with access to EcoStruxure software
Manufacturer
APC BY SCHNEIDER ELECTRIC
Part number
GVSUPS10KR0B5FS
Condition
New
Category
Power & Rack Equipment › Power Equipment
1GPA category
Hardware
Overview

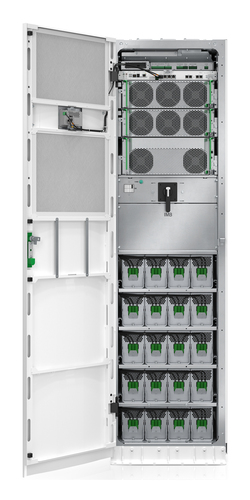

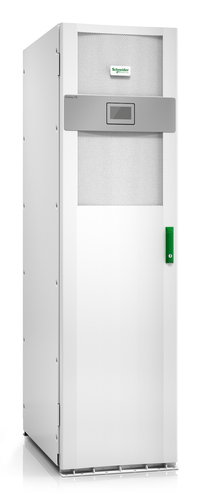

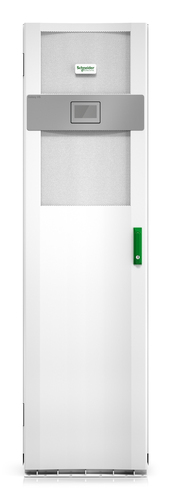

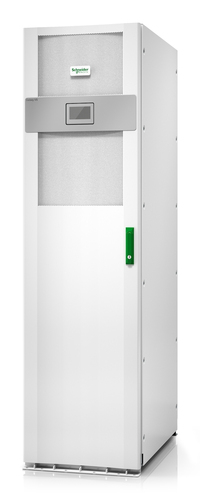

Highly efficient, easy-to-deploy 10 kW, 208 V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. This UPS is for up to 5 smart modular high capacity battery strings, but is supplied without batteries, so you can easily customize the battery runtime. Includes 5x8 start-up service and one additional power module for N+1 redundancy.
Specifications
Features
Output power capacity
10 kVA
Output power
10000 W
Waveform
Sine
Input operation voltage (min)
200 V
Input operation voltage (max)
220 V
Input frequency
40 - 70 Hz
Output operation voltage (min)
200 V
Output operation voltage (max)
220 V
Output frequency
50/60 Hz
Maximum current
27 A
Heat dissipation
1734 BTU/h
Number of input phases
3
Number of output phases
3
Power factor
0.99
Crest factor
2.5:1
Output voltage Total Harmonic Distortion (THD)
1%
Input current Total Harmonic Distortion (THD)
6%
Noise level
54 dB
Battery
Battery technology
Lithium-Ion (Li-Ion)
Design
Product colour
White
International Protection (IP) code
IP20
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 40 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
10 - 80%
Operating altitude
0 - 1000 m
Technical details
Minimum order quantity
1 pc(s)
Battery included
No
Packaging content
Manual
Yes
Power
Input current (max)
36 A
Weight & dimensions
Width
550 mm
Depth
847 mm
Height
1970 mm
Weight
266 kg
Packaging data
Package width
550 mm
Package depth
847 mm
Package height
197 mm
Package weight
250 kg
Logistics data
Warranty period
1 year(s)
