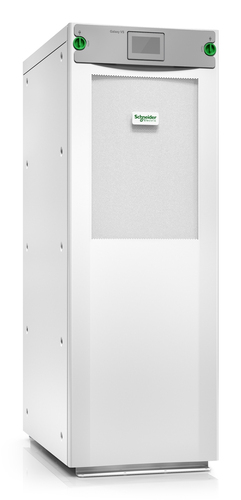

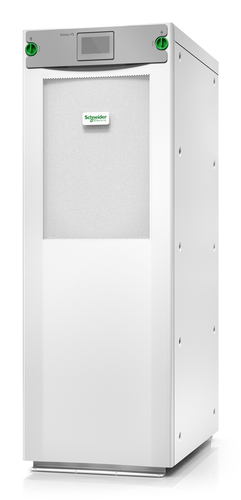

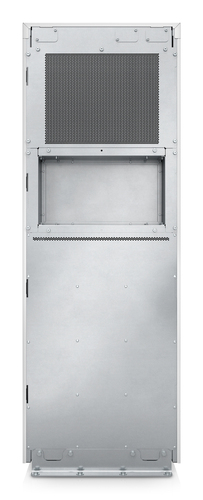

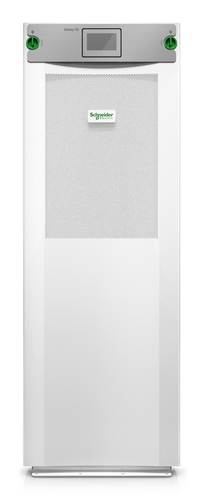

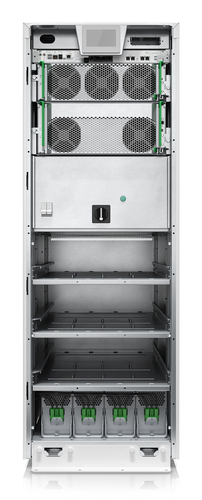

APC GVSUPS10K0B4FS uninterruptible power supply (UPS) 10 kVA 10000 W
Part number GVSUPS10K0B4FS
GALAXY VS UPS 10KW 208V FOR UP GALAXY VS UPS 10KW 208V FOR UP TO 4
Up to 99% efficient in eConversion mode
Maximize availability with modular architecture
Live Swap: Third party verified module replacement with no scheduled downtime
Unlock resiliency and sustainability with access to EcoStruxure software
Manufacturer
APC BY SCHNEIDER ELECTRIC
Part number
GVSUPS10K0B4FS
Condition
New
Category
Power & Rack Equipment › Power Equipment
1GPA category
Hardware
Overview
Highly efficient, easy-to-deploy 10 kW, 208 V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. This UPS is for up to 4 smart modular high capacity battery strings, but is supplied without batteries, so you can easily customize the battery runtime. Includes 5x8 start-up service.
Specifications
Features
Output power capacity
10 kVA
Output power
10000 W
Waveform
Sine
Input operation voltage (min)
200 V
Input operation voltage (max)
220 V
Input frequency
40 - 70 Hz
Output operation voltage (min)
200 V
Output operation voltage (max)
220 V
Output frequency
50/60 Hz
Output voltage regulation
1%
Maximum current
27 A
Heat dissipation
2286 BTU/h
Number of input phases
3
Number of output phases
3
Input power factor
0.99
Crest factor
2.5:1
Output voltage Total Harmonic Distortion (THD)
5%
Input current Total Harmonic Distortion (THD)
3%
Noise level
55 dB
Battery
Battery technology
Sealed Lead Acid (VRLA)
Design
Product colour
White
Control type
Touch
Display type
LCD
International Protection (IP) code
IP20
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 40 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
10 - 80%
Operating altitude
0 - 1000 m
Technical details
Minimum order quantity
1 pc(s)
Battery included
No
Packaging content
Manual
Yes
Power
Input current (max)
36 A
Weight & dimensions
Width
521 mm
Depth
847 mm
Height
1485 mm
Weight
200 kg
Packaging data
Package width
990 mm
Package depth
640 mm
Package height
168 mm
Package weight
200 kg
Logistics data
Warranty period
1 year(s)
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
