Overview

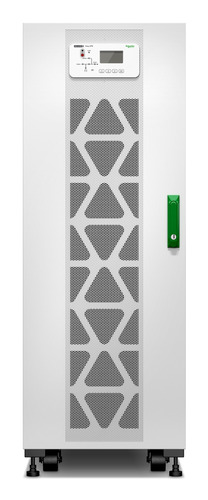

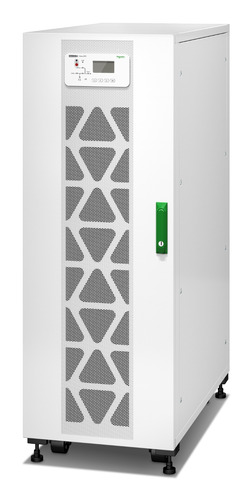

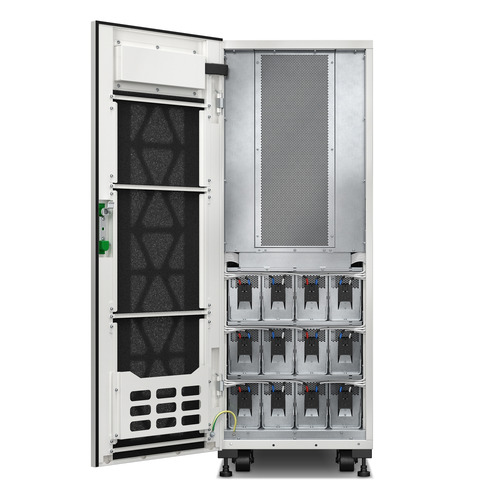

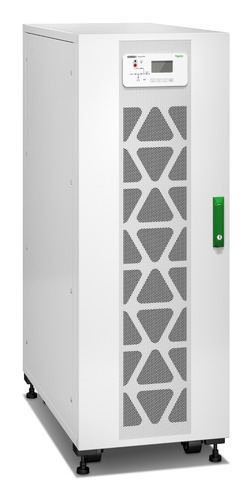

High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 40 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. Includes 5x8 start-up service.
Specifications
Features
| UPS topology | Double-conversion (Online) |
|---|
| Output power capacity | 40 kVA |
|---|
| Output power | 40000 W |
|---|
| Waveform | Pure sine |
|---|
| Input operation voltage (min) | 304 V |
|---|
| Input operation voltage (max) | 477 V |
|---|
| Input frequency | 40 - 70 Hz |
|---|
| Output frequency | 50 Hz |
|---|
| Maximum current | 73 A |
|---|
| Heat dissipation | 2800 BTU/h |
|---|
| Power factor | 0.7 |
|---|
Battery
| Battery technology | Lead-Acid |
|---|
| Battery voltage | 120 V |
|---|
Design
| Form factor | Tower |
|---|
| Product colour | White |
|---|
| Display type | LCD |
|---|
| International Protection (IP) code | IP20 |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -15 - 40 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95% |
|---|
| Storage relative humidity (H-H) | 0 - 95% |
|---|
Certificates
| Compliance certificates | RoHS |
|---|
| Certification | CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH |
|---|
Packaging content
| Management card included | No |
|---|
| Manual | Yes |
|---|
| Quick installation guide | Yes |
|---|
Weight & dimensions
| Width | 380 mm |
|---|
| Depth | 1092 mm |
|---|
| Height | 1400 mm |
|---|
| Weight | 187 kg |
|---|
Packaging data
| Package width | 1200 mm |
|---|
| Package depth | 800 mm |
|---|
| Package height | 1595 mm |
|---|
| Package weight | 220 kg |
|---|
Other features
| Output voltage | 208 V |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
