Products › Power & Rack Equipment

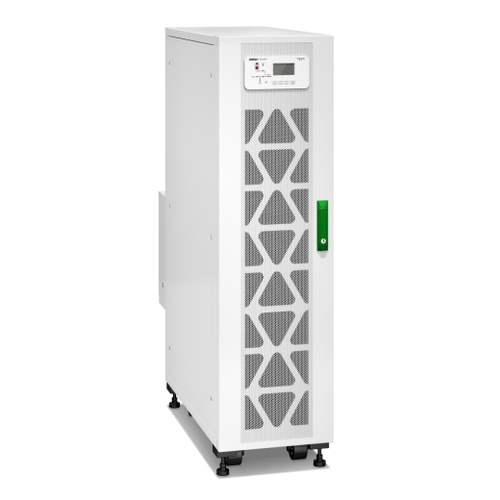

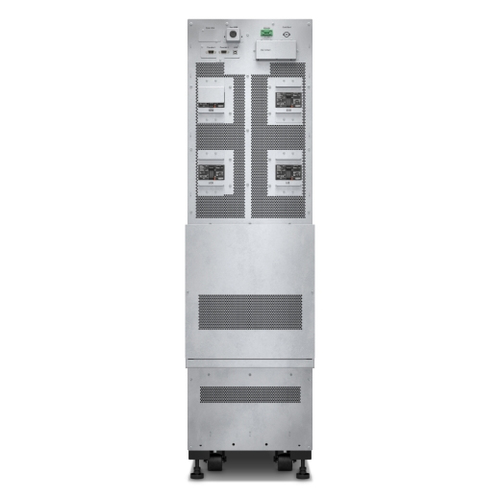

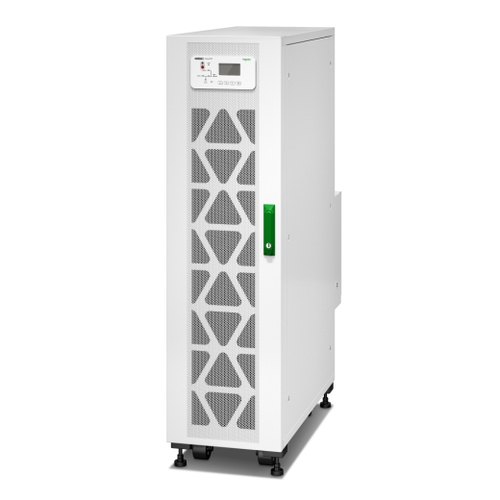

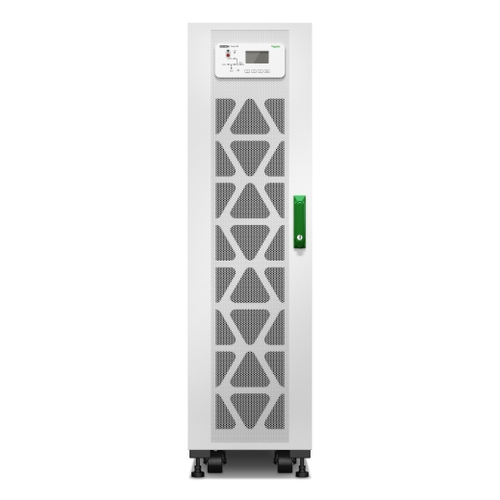

APC E3SUPS15KFBS uninterruptible power supply (UPS) Double-conversion (Online) 15 kVA 15000 W
Part number E3SUPS15KFBS
EASY UPS 3S 15 KVA 208V 3-3 UPS INTERNAL BATTERIES START-UP 5X8
- High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in
- Includes: Dust filter, Installation manual, Start-up service
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- E3SUPS15KFBS
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Easy UPS 3S 15 kVA 208V 3:3 UPS for internal batteries, Start-up 5x8
High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 15 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. Includes 5x8 start-up service.
Includes: Dust filter, Installation manual, Start-up service
Straightforward installation
Including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment.
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Intuitive user interface
The intuitive graphical user interface allows for easy system configuration.
Easy to install fast
Quickly roll the compact and lightweight UPS into position.
Front-access servicing
Simplifies installation and UPS maintenance while minimizing space requirements.
Easy Loop Test
Verifies UPS performance before you connect your load, without the need for a load bank.
Specifications
| UPS topology | Double-conversion (Online) |
|---|---|
| Output power capacity | 15 kVA |
| Output power | 15000 W |
| Input operation voltage (max) | 220 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 220 V |
| Output frequency | 50/60 Hz |
| Crest factor | 3:3 |
| ECO mode | Yes |
| Noise level | 68 dB |
| Power protection features | Overload, Short circuit |
| Battery voltage | 120 V |
|---|
| Form factor | Large tower |
|---|---|
| Product colour | White |
| Control type | Touch |
| International Protection (IP) code | IP20 |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 1499.92 m |
| Non-operating altitude | 0 - 15000 m |
| Compliance certificates | RoHS |
|---|---|
| Certification | cTUVus, FCC part 15 class B, IEC 62040-2, IEC 62040-3, ISTA 2B, UL 1778 5th edition |
| Quick installation guide | Yes |
|---|
| Width | 380 mm |
|---|---|
| Depth | 960 mm |
| Height | 1400 mm |
| Weight | 132 kg |
| Package width | 800 mm |
|---|---|
| Package depth | 1200 mm |
| Package height | 1595 mm |
| Package weight | 165 kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
