APC BY SCHNEIDER ELECTRIC

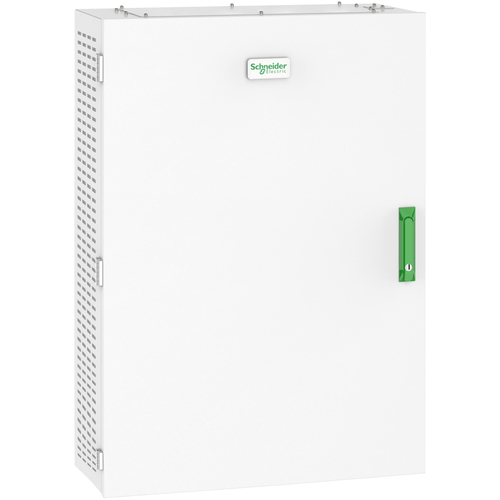

APC E3SBPAR10K40F maintenance bypass panel (MBP) 208 - 208 V White
Part number E3SBPAR10K40F
EASY UPS 3S PARALLEL MNT BYPASS PANEL 3 UPSS 10-40KVA 208V
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- E3SBPAR10K40F
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Description
Maintenance bypass panel for complete isolation of two 3-phase UPSs in parallel during service operations. This bypass panel is compatible with the 10-40kVA 208V Easy UPS 3S.
Specifications
| Housing colour | White |
|---|
| Operation voltage range | 208 - 208 V |
|---|
| Doesn't contain | Mercury |
|---|
| Compliance certificates | REACH, RoHS |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
| Maximum operating altitude | 2000 m |
| Width | 700 mm |
|---|---|
| Depth | 330 mm |
| Height | 700 mm |
| Weight | 70 kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
