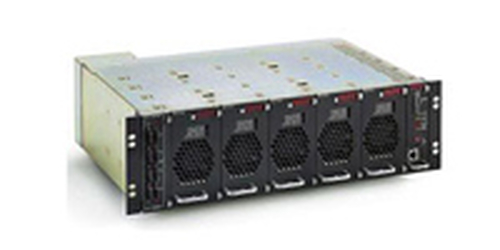

APC Magnum VS 50 W/SNMP2X30A CB Distribution power supply unit 10 W 3U Black
Part number DCM00K03S2X30
MAGNUM VS 50 W/SNMP 2X30A CB DISTRIBUTION
- 10 W
- 3U
- Black
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- DCM00K03S2X30
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Modular, rack-mountable DC power plant for low power wireless/cellular, customer premises and distributed networks applications.
-Includes: Rack Mounting brackets, user manual.
-No internal battery - uses external battery system.
-LED status display of rectifier healthy,Network link status LED.
-Battery voltage temperature compensation.
-Cable Entry.
-Dry Contact inputs.
-Input power factor correction.
-Integral low voltage disconnect.
Specifications
| Total power | 10 W |
|---|---|
| Input current | 5.5 A |
| Power protection features | Overload |
| Connector(s) | Hard Wire 3-wire |
|---|
| Power supply unit (PSU) form factor | 3U |
|---|
| Product colour | Black |
|---|---|
| LED indicators | Yes |
| Certification | CE,EN 55022 A,EN 55024,EN 61000-3-2,EN 61000-3-3,FCC 15 A,UL 1950. |
|---|
| Weight | 9.5 kg |
|---|
| Dimensions (WxDxH) | 438 x 330 x 133 mm |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
