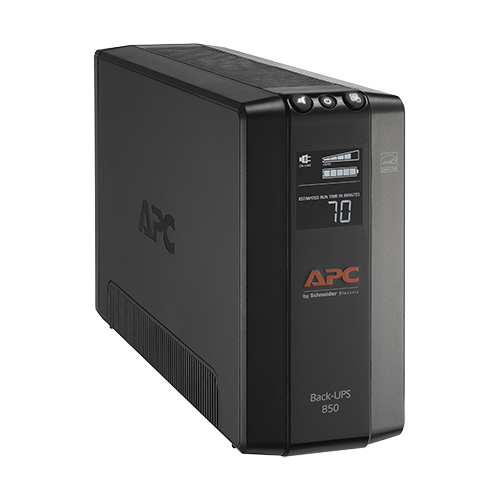

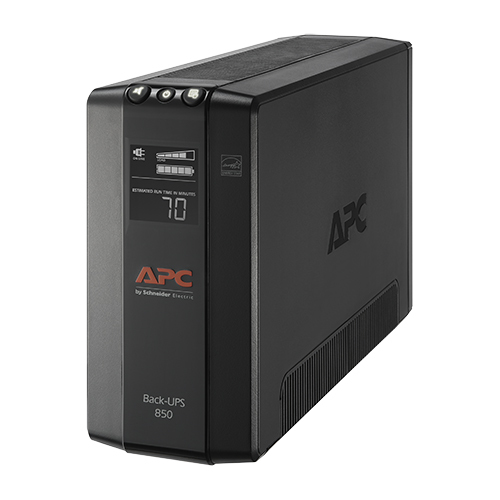

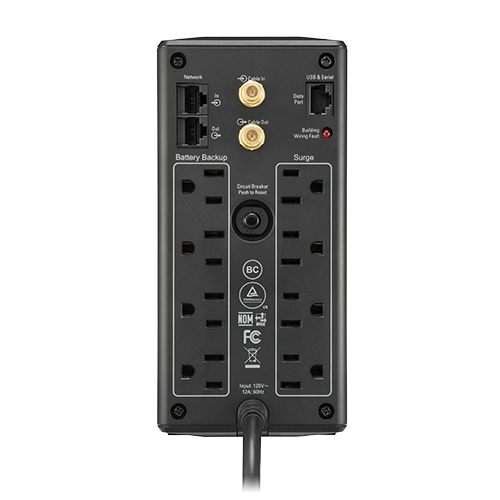

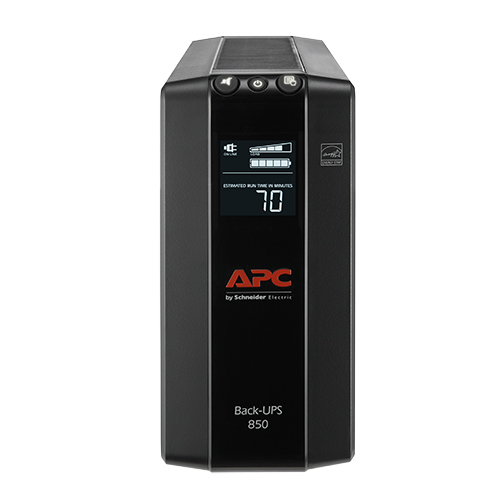

APC BX850M uninterruptible power supply (UPS) Line-Interactive 0.85 kVA 510 W 8 AC outlet(s)
Part number BX850M
BX850M - APC BACK-UPS 850, COMPACT TOWER, 850VA, 120V, AVR, LCD, 4 NEMA 5-15R,4
- Line-Interactive
- 0.85 kVA 510 W
- Waveform: Sine
- 8 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Tower Black
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- BX850M
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Audible alarms
Provides notification of changing utility power and UPS power conditions
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Battery replacement without tools
Enables fast battery replacement, lowering Mean Time to Repair (MTTR).
Boost Automatic Voltage Regulation (AVR)
Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.
Building Wiring Fault Indicator
This LED informs users of potentially dangerous wiring problems in the wall circuit.
Cold-start capable
Provides temporary battery power when the utility power is out.
Dataline surge protection
Provides protection of connected equipment from power surges on the data lines.
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.
Lifetime data recovery warranty
Provides peace of mind by providing professional data recovery services in the event data is lost due to the failure of the unit.
Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse.
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Specifications
| UPS topology | Line-Interactive |
|---|---|
| Output power capacity | 0.85 kVA |
| Output power | 510 W |
| Waveform | Sine |
| Input operation voltage (min) | 88 V |
| Input operation voltage (max) | 139 V |
| Input frequency | 60 Hz |
| Output operation voltage (max) | 120 V |
| Output frequency regulation | 60 Hz |
| Maximum current | 12 A |
| Surge energy rating | 1103 J |
| AC outlet types | NEMA 5–15R |
|---|---|
| AC outlets quantity | 8 AC outlet(s) |
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 10/100/1000Base-T(X) |
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Battery life (max) | 5 year(s) |
| Battery recharge time | 12 h |
| Form factor | Tower |
|---|---|
| Cable length | 1.83 m |
| Product colour | Black |
| Display type | LCD |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Compliance certificates | RoHS |
|---|---|
| Certification | California (CEC) Battery Charger, FCC Part 15 Class B, UL 1778 |
| Sustainability certificates | ENERGY STAR |
|---|
| Width | 91 mm |
|---|---|
| Depth | 310 mm |
| Height | 190 mm |
| Weight | 6.8 kg |
| Package width | 142 mm |
|---|---|
| Package depth | 442 mm |
| Package height | 253 mm |
| Package weight | 7.6 kg |
