Products › Power & Rack Equipment

APC BY SCHNEIDER ELECTRIC

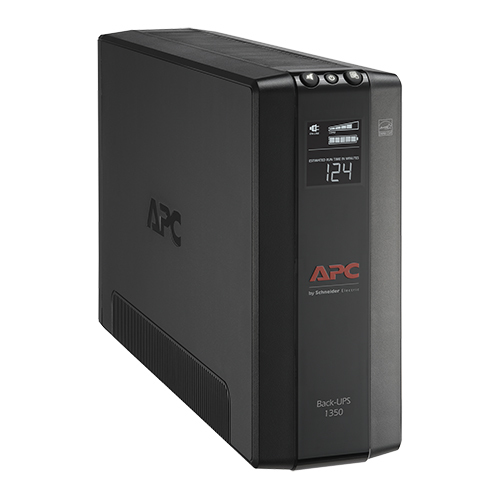

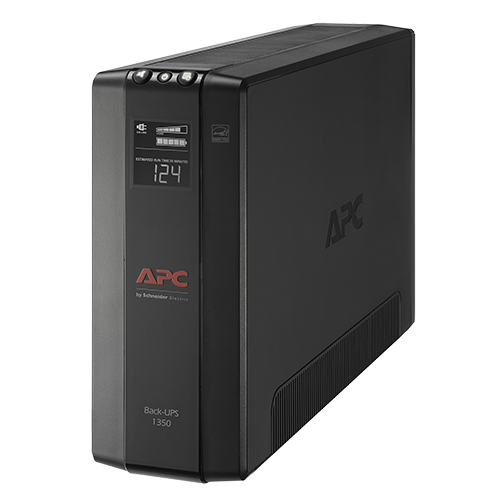

APC BX1350M uninterruptible power supply (UPS) Line-Interactive 1.35 kVA 810 W

Part number BX1350M

BX1350M - APC BACK-UPS 1350, COMPACT TOWER, 1350VA, 120V, AVR, LCD, 5 NEMA 5-15R

  • Line-Interactive
  • 1.35 kVA 810 W
  • Waveform: Sine
  • Sealed Lead Acid (VRLA)
  • Tower Black
Manufacturer
APC BY SCHNEIDER ELECTRIC
Part number
BX1350M
Condition
New
Category
Power & Rack Equipment › Power Equipment
1GPA category
Hardware

Overview

Adjustable voltage sensitivity

Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Audible alarms

Provides notification of changing utility power and UPS power conditions

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Battery replacement without tools

Enables fast battery replacement, lowering Mean Time to Repair (MTTR).

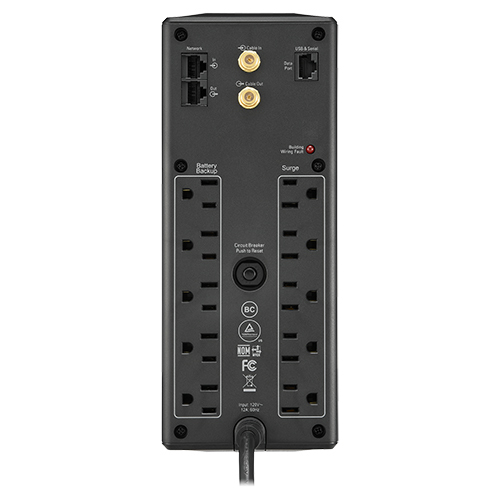

Battery-protected and surge-only outlets

Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment

Boost Automatic Voltage Regulation (AVR)

Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.

Building Wiring Fault Indicator

This LED informs users of potentially dangerous wiring problems in the wall circuit.

Cold-start capable

Provides temporary battery power when the utility power is out.

Dataline surge protection

Provides protection of connected equipment from power surges on the data lines.

Disconnected battery notification

Warns when a battery is not available to provide backup power.

Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

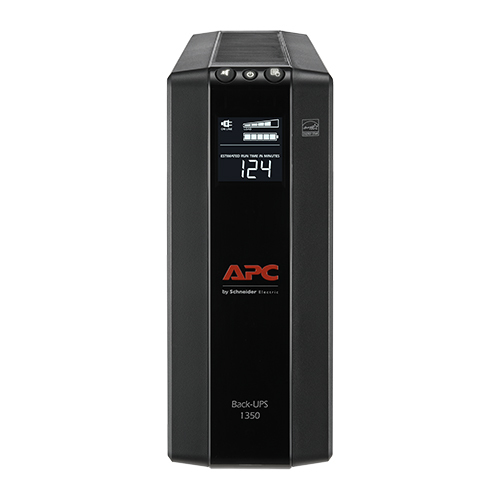

LCD graphics display

Text and mimic diagrams that display modes of operation, system parameters and alarms.

Lifetime data recovery warranty

Provides peace of mind by providing professional data recovery services in the event data is lost due to the failure of the unit.

Specifications

Features
UPS topologyLine-Interactive
Output power capacity1.35 kVA
Output power810 W
WaveformSine
Input operation voltage (min)88 V
Input operation voltage (max)139 V
Input frequency60 Hz
Output operation voltage (max)120 V
Output frequency regulation60 Hz
Maximum current12 A
Surge energy rating789 J
Audible alarm(s)Yes
Audible alarm modesAlarm when on battery, Low battery alarm, Overload alarm
Ports & interfaces
AC outlet typesNEMA 5–15R
Ethernet LAN (RJ-45) ports1
Cabling technology10/100/1000Base-T(X)
Battery
Battery technologySealed Lead Acid (VRLA)
Battery recharge time16 h
Design
Form factorTower
Cable length1.83 m
Product colourBlack
Display typeLCD
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Certificates
Compliance certificatesRoHS
CertificationCalifornia (CEC) Battery Charger, FCC Part 15 Class B, UL 1778
Sustainability
Sustainability certificatesENERGY STAR
Weight & dimensions
Width100 mm
Depth382 mm
Height250 mm
Weight10.2 kg
Packaging data
Package width227 mm
Package depth491 mm
Package height348 mm
Package weight11.9 kg

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
