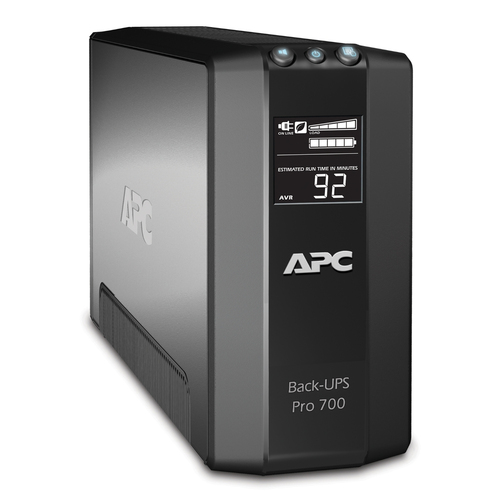

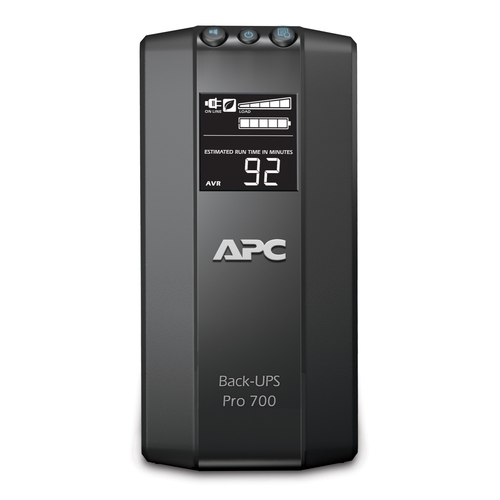

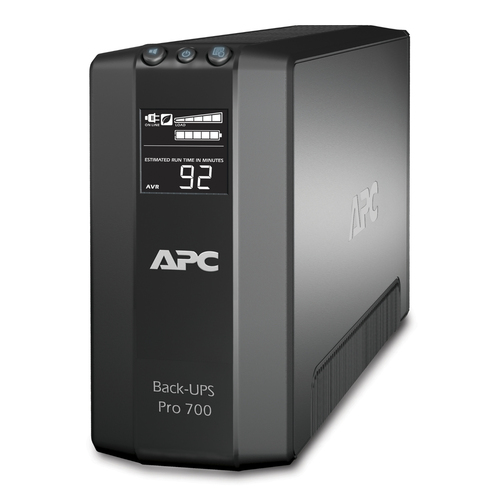

APC BR700G uninterruptible power supply (UPS) Line-Interactive 0.7 kVA 420 W 6 AC outlet(s)
Part number BR700G
BR700G - UPS - TOWER - LINE-INTERACTIVE - 120 V - 420WATT - 700VA - 15A - USB -
- Line-Interactive
- 0.7 kVA 420 W
- Waveform: Sine
- 6 AC outlet(s)
- Sealed Lead Acid (VRLA) 12 V 9 Ah
- Tower Black
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- BR700G
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Specifications
| UPS topology | Line-Interactive |
|---|---|
| Output power capacity | 0.7 kVA |
| Output power | 420 W |
| Waveform | Sine |
| Input operation voltage (min) | 88 V |
| Input operation voltage (max) | 143 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (max) | 120 V |
| Surge energy rating | 354 J |
| Response time | 12 ms |
| Heat dissipation | 48.5 BTU/h |
| Noise level | 45 dB |
| Audible alarm(s) | Yes |

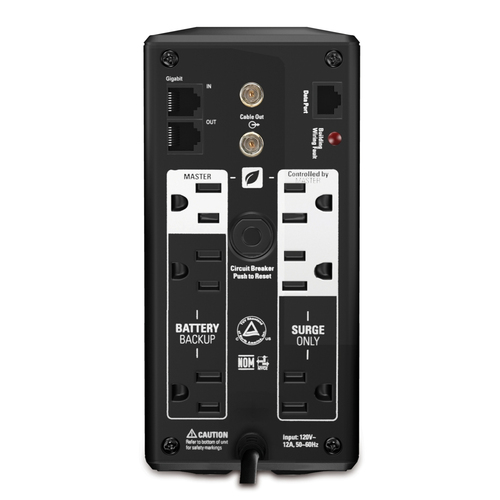

| AC outlet types | NEMA 5-15P, NEMA 5-15R |
|---|---|
| Power plug | NEMA 5-15P |
| AC outlets quantity | 6 AC outlet(s) |
| Ethernet LAN (RJ-45) ports | 2 |
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Battery capacity | 9 Ah |
| Battery voltage | 12 V |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 12 h |
| Form factor | Tower |
|---|---|
| Cable length | 1.8 m |
| Product colour | Black |
| LED indicators | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Certification | FCC Part 15 Class B, FCC Part 68, NOM, UL 1778 |
|---|
| Width | 91 mm |
|---|---|
| Depth | 310 mm |
| Height | 190 mm |
| Weight | 7.15 kg |
| Package width | 442 mm |
|---|---|
| Package depth | 138 mm |
| Package height | 252 mm |
| Package weight | 8 kg |
