APC BY SCHNEIDER ELECTRIC

APC BR650MI uninterruptible power supply (UPS) Line-Interactive 0.65 kVA 390 W 6 AC outlet(s)

Part number BR650MI

BR650MI - UPS - TOWER - LINE-INTERACTIVE - 230 V - 390WATT - 650VA - USB - 6 IEC

  • Line-Interactive
  • 0.65 kVA 390 W
  • Waveform: Sine
  • 6 AC outlet(s)
  • Sealed Lead Acid (VRLA)
  • Tower Black
Manufacturer
APC BY SCHNEIDER ELECTRIC
Part number
BR650MI
Condition
New
Category
Power & Rack Equipment › Power Equipment
1GPA category
Hardware

Overview

Security through emergency power

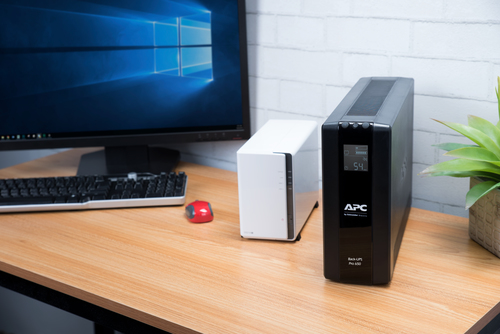

The APC Back-UPS PRO BR650MI has a built-in battery that ensures that all connected equipment, such as a PC, NAS, router, modem and media box, continues to work if the power goes out. In addition, this APC emergency power supply can also automatically shut down a NAS or PC in time via the USB connection. Useful when the APC ups is almost empty. This prevents downtime, damage to equipment, and loss of data.

Safety and convenience

In addition, this safe APC Back-UPS PRO protects valuable equipment against peak voltage caused by lightning strikes, for example. With these UPS you can secure both your power and network connections (1Gbit). Because the APC Back-UPS PRO is also equipped with an LCD screen, it is easy to use.

Insurance

Despite the high risk of lightning strikes and surges, APC has full confidence in its products and offers this APC Back-UPS:

- Equipment protection policy of 150,000 euros

Extend the lifespan

The internal battery cartridge (APCRBC110) can be replaced easily, safely and independently by the user. This without having to switch off the APC BR650MI or connected equipment. This way you can easily and cheaply extend the lifespan of the APC Back-UPS.

Warranty extension

The factory warranty of the BR650MI is 3 years and can be upgraded to 6 years with the APC service pack (WBEXTWAR3YR-SP-01).

Save on operational costs

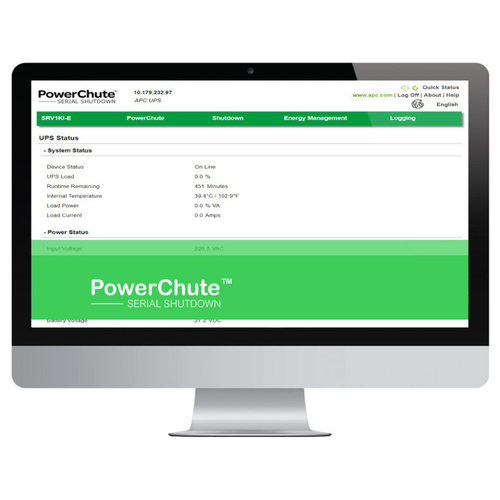

The BR650MI features a customizable AVR, which extends battery life and maximizes runtime by correcting low and high voltages without discharging the battery. In addition, the UPS has Greenmode, a smart power-saving operating mode that optimally combines efficiency and protection. Furthermore, the emergency power supply has 6 Battery+surge protected outputs. PowerChute Serial Shutdown software and a USB cable are also included.

Specifications

Features
UPS topologyLine-Interactive
Output power capacity0.65 kVA
Output power390 W
WaveformSine
Input operation voltage (min)176 V
Input operation voltage (max)294 V
Input frequency50/60 Hz
Output frequency50/60 Hz
Automatic Voltage Regulation (AVR)Yes
Maximum current10 A
Response time12 ms
ECO modeYes
Noise level45 dB
Surge protectionYes
Surge protection featuresNetwork
Audible alarm(s)Yes
Audible alarm modesAlarm when on battery, Low battery alarm, Overload alarm
Ports & interfaces

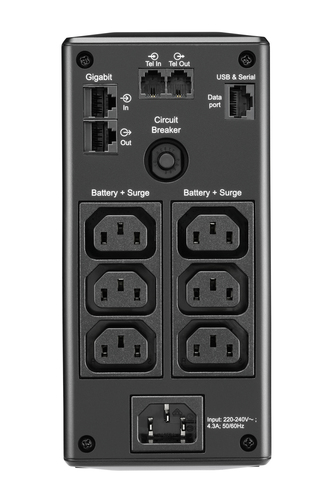

AC outlet typesC13 coupler
Power plugC14 coupler
AC outlets quantity6 AC outlet(s)
USB portYes
USB 2.0 ports quantity1
Ethernet LAN (RJ-45) ports2
Cabling technology10/100/1000Base-T(X)
SmartSlotNo
SmartConnect portNo
Battery
Battery technologySealed Lead Acid (VRLA)
Battery life (max)5 year(s)
Battery recharge time12 h
Hot-swap batteryYes
Automatic battery testYes
Cold startYes
Design
Form factorTower
Cable length1.83 m
Cooling typePassive
Product colourBlack
Display typeLCD
LED indicatorsYes
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Certificates
CertificationA-tick, C-tick, CE, EAC, GS Mark, RCM, TISI
Packaging content
Cables includedUSB cable
Management card includedNo
ManualYes
Sustainability
Sustainability certificatesGreen Premium
Weight & dimensions
Width91 mm
Depth310 mm
Height190 mm
Weight6.4 kg
Packaging data
Package width440 mm
Package depth143 mm
Package height255 mm
Package weight7.4 kg
Logistics data
Harmonized System (HS) code85078000
Other features
Nominal output voltage230 V
Nominal input voltage230 V

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
