APC BY SCHNEIDER ELECTRIC

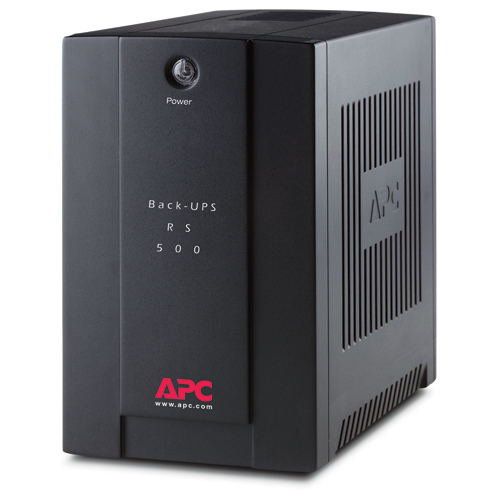

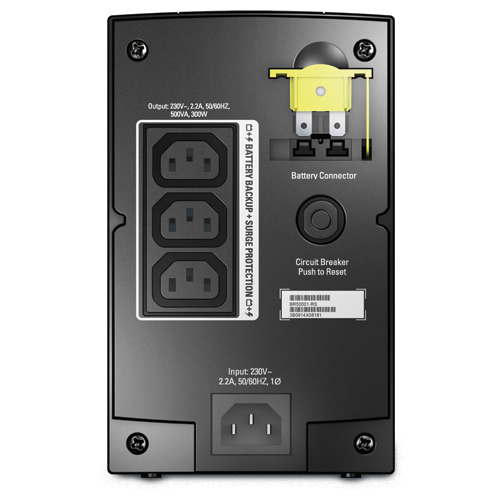

APC Back-UPS 500VA uninterruptible power supply (UPS) 0.5 kVA 300 W 4 AC outlet(s)

Part number BR500CI-AS

APC BACK UPS RS 500, 230V

  • 0.5 kVA 300 W
  • 4 AC outlet(s)
  • Sealed Lead Acid (VRLA)
  • Mini Tower Black
Manufacturer
APC BY SCHNEIDER ELECTRIC
Part number
BR500CI-AS
Condition
New
Category
Power & Rack Equipment › Power Equipment
1GPA category
Hardware

Overview

Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Status Indicator LED's

Provides a quick visual indication of your unit's status.

Resettable circuit breaker

Easy recovery from overloads; no need to replace a fuse.

Boost Automatic Voltage Regulation (AVR)

Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Adjustable voltage-transfer points

Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Adjustable voltage sensitivity

Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Audible alarms

Provides notification of changing utility power and UPS conditions

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Lightning and Surge Protection

Protection from surges, spikes and even lightning is guaranteed!

Resettable circuit breaker

Instead of a hard to find fuse, there is a push-button circuit breaker for easy recovery from an overload or short circuit.

Audible alarms

Proactively notifies you of changing UPS and utility power conditions.

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Transformer Block Spacing

Designed to allow the use of up to two transformer block plugs without blocking access to other receptacles.

Specifications

Features
Output power capacity0.5 kVA
Output power300 W
Input operation voltage (max)230 V
Input frequency50/60 Hz
Output operation voltage (max)230 V
Surge energy rating240 J
Number of input phases1
Number of output phases3
Surge protectionYes
Audible alarm(s)Yes
Ports & interfaces
AC outlet typesC13 coupler
Power plugC14 coupler
AC outlets quantity4 AC outlet(s)
Battery
Battery technologySealed Lead Acid (VRLA)
Typical backup time at full load70 min
Typical backup time at half load1 min
Battery recharge time10 h
Design
Form factorMini Tower
Cable length1.8 m
Product colourBlack
LED indicatorsPower
Operational conditions
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Certificates
Compliance certificatesRoHS
Weight & dimensions
Width115 mm
Depth213 mm
Height185 mm
Weight4.9 kg
Packaging data
Package weight5.5 kg
Other features
Output connection typeIEC 320 C13
Package dimensions (WxDxH)190 x 291 x 257 mm

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
