Overview

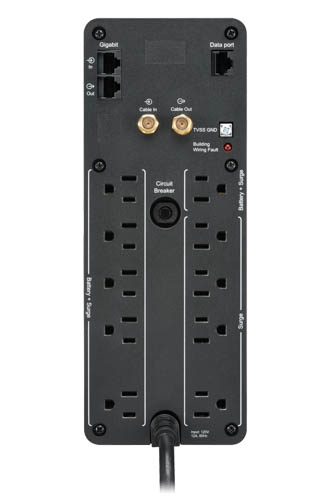

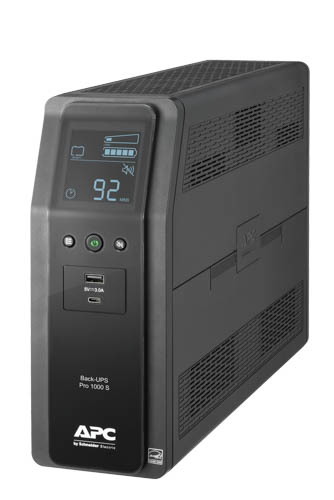

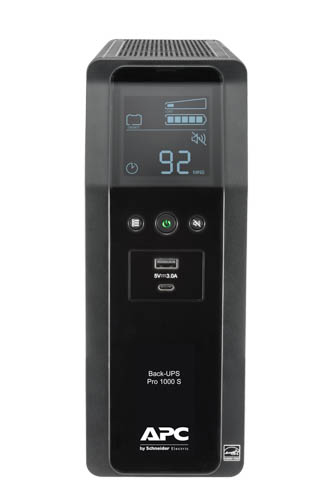

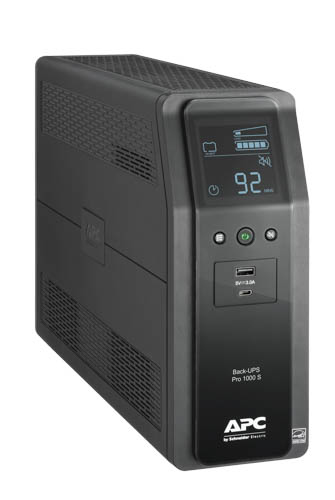

Back UPS PRO BR 1000VA, SineWave, 10 Outlets, 2 USB Charging Ports, AVR, LCD interface
Specifications
Features
| UPS topology | Line-Interactive |
|---|
| Output power capacity | 1 kVA |
|---|
| Output power | 600 W |
|---|
| Waveform | Sine |
|---|
| Input operation voltage (min) | 88 V |
|---|
| Input operation voltage (max) | 147 V |
|---|
| Input frequency | 60 Hz |
|---|
| Output frequency | 60 Hz |
|---|
| Automatic Voltage Regulation (AVR) | Yes |
|---|
| Maximum current | 12 A |
|---|
| Surge energy rating | 1080 J |
|---|
| Hold time (min) | 8 ms |
|---|
| Hold time (max) | 10 ms |
|---|
| EMI/RFI noise filtering | Yes |
|---|
| Noise level | 45 dB |
|---|
| Surge protection | Yes |
|---|
| Surge protection features | Coax, Network |
|---|
| Audible alarm(s) | Yes |
|---|
| Audible alarm modes | Low battery alarm, Overload alarm |
|---|
Ports & interfaces
| AC outlet types | NEMA 5-15R |
|---|
| Power plug | NEMA 5-15P |
|---|
| AC outlets quantity | 10 AC outlet(s) |
|---|
| USB port | Yes |
|---|
Battery
| Battery technology | Sealed Lead Acid (VRLA) |
|---|
| Battery life (max) | 5 year(s) |
|---|
| Battery recharge time | 16 h |
|---|
| Hot-swap battery | Yes |
|---|
| Automatic battery test | Yes |
|---|
| Cold start | Yes |
|---|
Design
| Form factor | Tower |
|---|
| Cable length | 1.83 m |
|---|
| Product colour | Black |
|---|
| Display type | LCD |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -15 - 45 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95% |
|---|
| Storage relative humidity (H-H) | 0 - 95% |
|---|
| Operating altitude | 0 - 3000 m |
|---|
| Non-operating altitude | 0 - 3000 m |
|---|
Certificates
| Compliance certificates | RoHS |
|---|
| Certification | FCC 15 B, NOM, TUV C-US |
|---|
Packaging content
| Cables included | USB cable |
|---|
| Manual | Yes |
|---|
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
Weight & dimensions
| Width | 100 mm |
|---|
| Depth | 368 mm |
|---|
| Height | 260 mm |
|---|
| Weight | 10.2 kg |
|---|
Packaging data
| Package width | 223 mm |
|---|
| Package depth | 482 mm |
|---|
| Package height | 358 mm |
|---|
| Package weight | 11.8 kg |
|---|
Logistics data
| Products per pallet | 16 pc(s) |
|---|
| Harmonized System (HS) code | 85078000 |
|---|
| Master (outer) case gross weight | 11.8 kg |
|---|
| Products per master (outer) case | 1 pc(s) |
|---|
Other features
| Output voltage | 120 V |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
