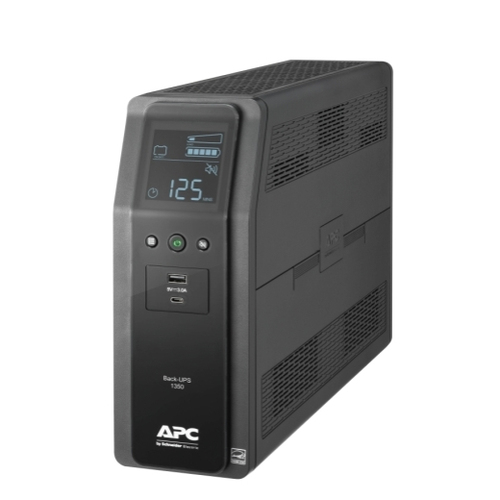

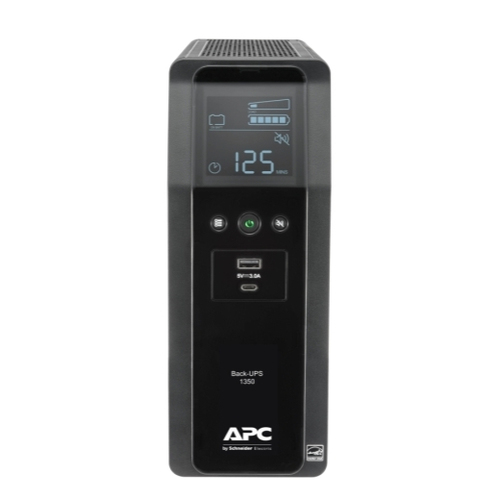

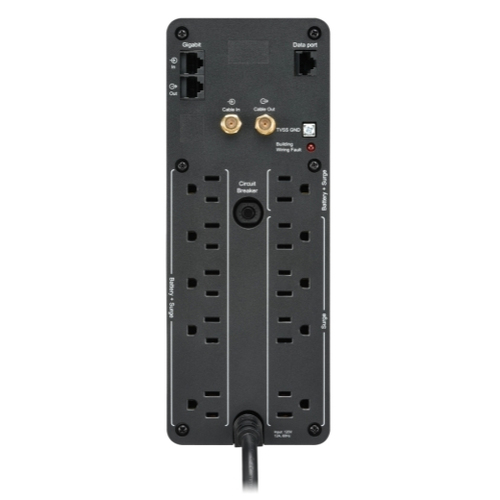

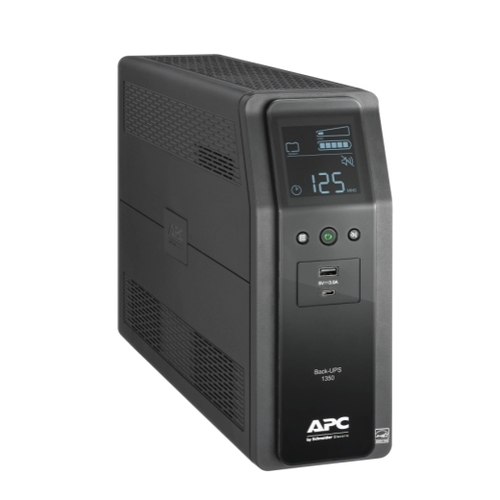

APC BN1350M2 uninterruptible power supply (UPS) Line-Interactive 1.35 kVA 810 W
Part number BN1350M2
BACK UPS PRO BN 1350VA, 10 OUTLETS, 2 USB CHARGING PORTS, AVR, LCD INTERFACE
- Back UPS PRO BN 1350VA, 10 Outlets, 2 USB Charging Ports, AVR, LCD interface
- High Performance Computer and Electronics UPS for Premium Power Protection
- Includes: Coaxial cable, USB cable, User manual
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- BN1350M2
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Audible alarms
Provides notification of changing utility power and UPS power conditions
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Battery backup and surge protection
Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.
Battery replacement without tools
Enables fast battery replacement, lowering Mean Time to Repair (MTTR).
Boost Automatic Voltage Regulation (AVR)
Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.
Building Wiring Fault Indicator
This LED informs users of potentially dangerous wiring problems in the wall circuit.
Dataline surge protection
Provides protection of connected equipment from power surges on the data lines.
EMI and RFI noise filtering
Reduces line noise that can cause data loss and keyboard errors.
ENERGY STAR for UPS
Establishes that the efficiency of the UPS is in the top 25% of the market as verified by third party testing
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.
Lifetime data recovery warranty
Provides peace of mind by providing professional data recovery services in the event data is lost due to the failure of the unit.
PowerChute Personal Edition OS Compatibility
This software supports numerous operating systems and processors. For further information, please bra href="www.apc.com/wp/?um=300"click here./a
RoHS
Certifies that electronic devices don't contain hazardous metals and flame retardants
USB charging ports
Allows you to simultaneously charge and power your mobile phone and handheld computer using APC USB charging cables (sold separately).
Specifications
| UPS topology | Line-Interactive |
|---|---|
| Output power capacity | 1.35 kVA |
| Output power | 810 W |
| Input operation voltage (min) | 88 V |
| Input operation voltage (max) | 139 V |
| Input frequency | 60 Hz |
| Output frequency | 60 Hz |
| Automatic Voltage Regulation (AVR) | Yes |
| Surge energy rating | 1080 J |
| Response time | 8 ms |
| Noise level | 45 dB |
| Audible alarm(s) | Yes |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| USB port | Yes |
|---|
| Battery life (max) | 5 year(s) |
|---|---|
| Battery recharge time | 16 h |
| Hot-swap battery | Yes |
| Product colour | Black |
|---|---|
| Display type | LCD |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 3048 m |
| Compliance certificates | RoHS |
|---|---|
| Certification | ENERGY STAR V2.0 (USA), FCC part 15 class B, NOM, TUV C-US |
| Cables included | Coaxial, USB cable |
|---|---|
| Manual | Yes |
| Sustainability certificates | ENERGY STAR |
|---|
| Width | 100 mm |
|---|---|
| Depth | 368 mm |
| Height | 260 mm |
| Weight | 10.4 kg |
| Package width | 241 mm |
|---|---|
| Package depth | 500 mm |
| Package height | 380 mm |
| Package weight | 13 kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
