Overview

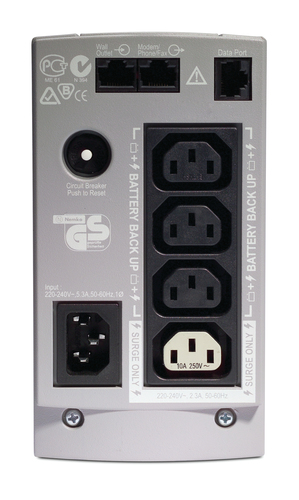

This product is part of the Back-UPS range. The BK550EI features a total of 6 power outlets, 3 of which are UPS battery backup and 3 that are surge only. Its runtime at 100W is 24 minutes 20 seconds It provides data line protection with a RJ45 analog phone line for phone or fax or modem or DSL. Its dimensions are 16.5 x 9.1 x 28.4 cm and 6.32kg. The BK550EI ensures office systems and their valuable data are protected from dangerous power surges, spikes and blackouts.
Specifications
Features
| UPS topology | Standby (Offline) |
|---|
| Output power capacity | 0.5 kVA |
|---|
| Output power | 300 W |
|---|
| Waveform | Sine |
|---|
| Input operation voltage (min) | 160 V |
|---|
| Input operation voltage (max) | 300 V |
|---|
| Input frequency | 50/60 Hz |
|---|
| Output frequency regulation | 47 - 63 Hz |
|---|
| Surge energy rating | 310 J |
|---|
| Hold time (min) | 6 ms |
|---|
| Hold time (max) | 10 ms |
|---|
| Efficiency | 99% |
|---|
| Noise level | 40 dB |
|---|
| Surge protection | Yes |
|---|
| Surge protection features | Digital Subscriber Line (DSL), Fax, Modem, Telephone |
|---|
| Power protection features | Overload |
|---|
| Audible alarm(s) | Yes |
|---|
| Audible alarm modes | Low battery alarm, Overload alarm |
|---|
Ports & interfaces
| AC outlet types | C13 coupler |
|---|
| Power plug | C14 coupler |
|---|
| AC outlets quantity | 4 AC outlet(s) |
|---|
| Number of output IEC jumpers | 2 |
|---|
| USB port | Yes |
|---|
| SmartSlot | No |
|---|
| SmartConnect port | No |
|---|
Battery
| Battery technology | Sealed Lead Acid (VRLA) |
|---|
| Battery capacity | 7 Ah |
|---|
| Battery capacity | 83 VAh |
|---|
| Battery voltage | 12 V |
|---|
| Typical backup time at full load | 3.8 min |
|---|
| Typical backup time at half load | 13.8 min |
|---|
| Battery life (max) | 6 year(s) |
|---|
| Battery recharge time | 8 h |
|---|
| Automatic battery test | Yes |
|---|
Design
| Form factor | Tower |
|---|
| Cable length | 1.83 m |
|---|
| Product colour | Beige |
|---|
| LED indicators | Battery replacement |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -15 - 45 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95% |
|---|
| Storage relative humidity (H-H) | 0 - 95% |
|---|
| Operating altitude | 0 - 3000 m |
|---|
| Non-operating altitude | 0 - 15000 m |
|---|
Certificates
| Compliance certificates | RoHS |
|---|
| Certification | C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE, REACH |
|---|
Packaging content
| Cables included | Phone (RJ-11), USB cable |
|---|
| Management card included | No |
|---|
| Quick installation guide | Yes |
|---|
Sustainability
| Sustainability certificates | ENERGY STAR, Green Premium |
|---|
Weight & dimensions
| Width | 91 mm |
|---|
| Depth | 284 mm |
|---|
| Height | 165 mm |
|---|
| Weight | 6.32 kg |
|---|
Packaging data
| Warranty card | Yes |
|---|
| Software CD | Yes |
|---|

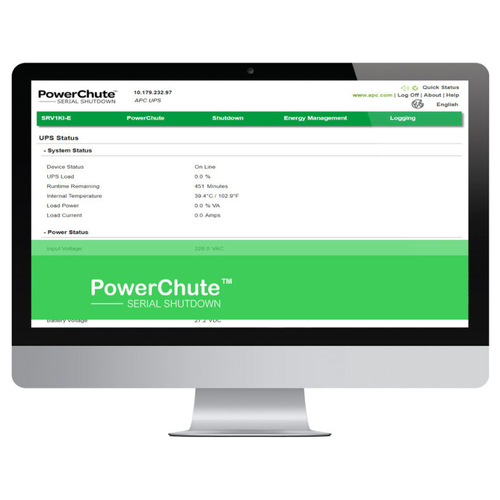

| Bundled software | PowerChute Serial Edition |
|---|
| Package width | 241 mm |
|---|
| Package depth | 368 mm |
|---|
| Package height | 178 mm |
|---|
| Package weight | 7.05 kg |
|---|
Logistics data
| Products per pallet | 48 pc(s) |
|---|
| Harmonized System (HS) code | 85078000 |
|---|
| Products per master (outer) case | 1 pc(s) |
|---|
Other features
| Nominal output voltage | 230 V |
|---|
| Nominal input voltage | 230 V |
|---|
| Filtering | Yes |
|---|
| Packaging content | Detachable 1.2m IEC power cord
Detachable 1.8 m IEC power cord |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
