APC BY SCHNEIDER ELECTRIC

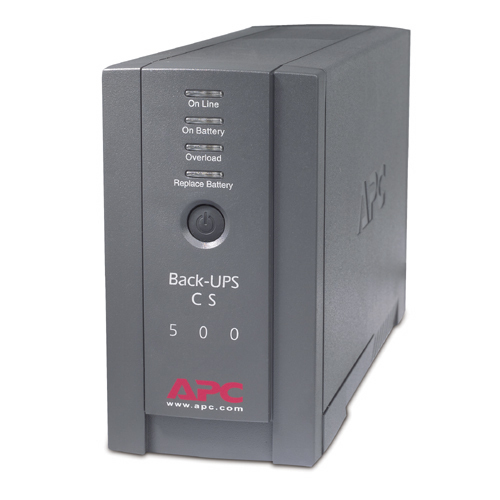

APC BK500BLK uninterruptible power supply (UPS) Line-Interactive 0.5 kVA 300 W

Part number BK500BLK

BACK-UPS CS - UPS - EXTERNAL - STANDBY - AC 120 V - 300 WATT / 500 VA - INTERFAC

  • Line-Interactive
  • 0.5 kVA 300 W
  • Waveform: Sine
  • Lead-Acid
  • Tower Black
Manufacturer
APC BY SCHNEIDER ELECTRIC
Part number
BK500BLK
Condition
New
Category
Power & Rack Equipment › Power Equipment
1GPA category
Hardware

Overview

Data line surge protection

Protects connected loads from surges, spikes, lightning, and other power disturbances.

Battery-protected and surge-only outlets

Reserves power capacity and run time for connected equipment that require battery back-up while providing surge only protection for less critical equipment

LED status indicators

Quickly understand unit and power status with visual indicators.

Audible Alarms

Provides notification of changing utility power and UPS conditions.

Transformer-block spaced outlets

Protect equipment with input transformer blocks without blocking access to other receptacles.

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Battery replacement without tools

Allows quick, easy battery replacement.

Cold-start capable

Provides temporary battery power when the utility power is out.

Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.

Resettable circuit breakers

Enables a quick recovery from overload events.

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. UL, FCC, CE, C-Tick approvals.

Specifications

Features
UPS topologyLine-Interactive
Output power capacity0.5 kVA
Output power300 W
WaveformSine
Input operation voltage (min)98 V
Input operation voltage (max)140 V
Input frequency50/60 Hz
Output frequency50/60 Hz
Surge energy rating480 J
Audible alarm(s)Yes
Audible alarm modesAlarm when on battery, Low battery alarm, Overload alarm
Ports & interfaces
USB portYes
Battery
Battery technologyLead-Acid
Typical backup time at full load2.4 min
Typical backup time at half load13.9 min
Battery recharge time8 h
Hot-swap batteryYes
Design
Form factorTower
Cable length1.8 m
Product colourBlack
LED indicatorsYes
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3000 m
Certificates
CertificationFCC Part 15 Class B/Industry Canada/UL 1778/cUL
Safety regulation & standards
SafetyUL,/FCC/CE/C-Tick
Weight & dimensions
Width91 mm
Depth284 mm
Height165 mm
Weight6.27 kg
Packaging data
Package weight6.95 kg
Logistics data
Products per pallet80 pc(s)
Other features
Output connections6 x NEMA 5-15R
Input connection typeNEMA 5-15P
Dimensions (WxDxH)91 x 284 x 165 mm
Nominal output voltage120 V
Nominal input voltage120 V
Non-operating relative humidity (non-condensing)0 - 95%
Weight (imperial)6.26 kg (13.8 lbs)
Operating temperature (T-T)0 - 40 °F
Package dimensions (WxDxH)175 x 357 x 263 mm

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
