Overview

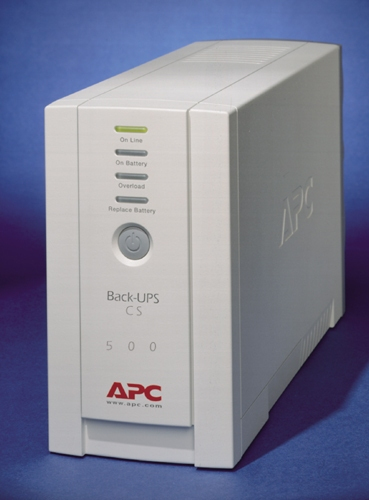

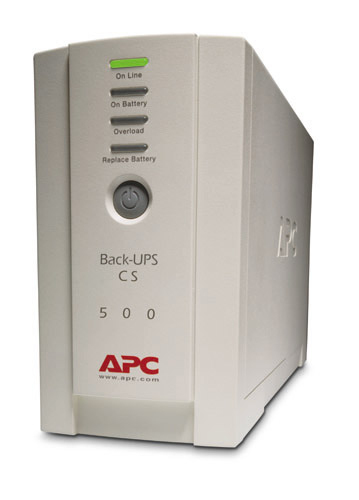

APC Back-UPS CS, 300 Watts / 500 VA,Input 120V / Output 120V, Interface Port DB-9 RS-232, USB.
Includes: CD with software, Cord management straps, USB cable, User Manual.
Specifications
Features
| Output power capacity | 0.5 kVA |
|---|
| Output power | 300 W |
|---|
| Surge energy rating | 480 J |
|---|
| Noise level | 45 dB |
|---|
| Audible alarm(s) | Yes |
|---|
Ports & interfaces
| Number of output IEC jumpers | 2 |
|---|
| USB 2.0 ports quantity | 1 |
|---|
| Serial ports quantity | 1 |
|---|
| Modem (RJ-11) ports | 1 |
|---|
Battery
| Battery technology | Sealed Lead Acid (VRLA) |
|---|
| Typical backup time at full load | 2.4 min |
|---|
| Typical backup time at half load | 13.9 min |
|---|
| Battery recharge time | 6 h |
|---|
Design
| Cable length | 1.83 m |
|---|
| Product colour | Beige |
|---|
| LED indicators | Yes |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -15 - 45 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95% |
|---|
| Storage relative humidity (H-H) | 0 - 95% |
|---|
| Operating altitude | 0 - 3000 m |
|---|
Certificates
| Certification | C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE |
|---|
Weight & dimensions
| Weight | 6.27 kg |
|---|
Packaging data
| Package weight | 6.95 kg |
|---|
Logistics data
| Products per pallet | 80 pc(s) |
|---|
| Harmonized System (HS) code | 85078000 |
|---|
Other features
| Interface | Serial, USB |
|---|

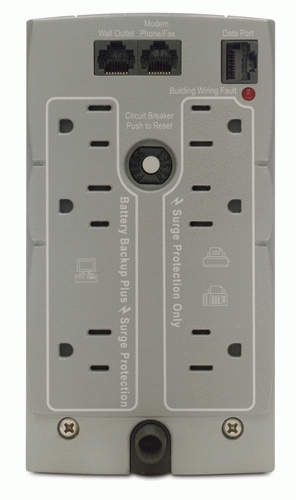

| Output connections | (3) NEMA 5-15R,
(3) NEMA 5-15R |
|---|
| Input connection type | IEC-320-C14 |
|---|
| Dimensions (WxDxH) | 91 x 284 x 165 mm |
|---|
| Nominal output voltage | 120 V |
|---|
| Nominal input voltage | 230 V |
|---|
| Filtering | Yes |
|---|
| Package dimensions (WxDxH) | 241 x 368 x 178 mm |
|---|
