Overview

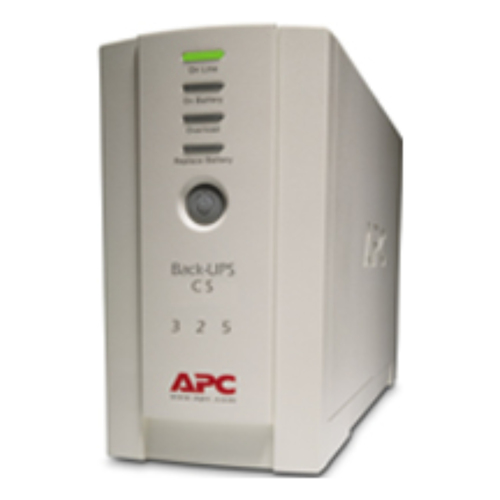

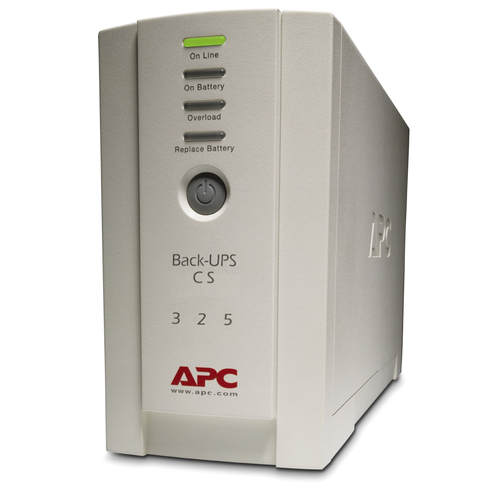

Battery Backup & Surge Protector for Electronics and Computers
Specifications
Features
| UPS topology | Standby (Offline) |
|---|
| Output power capacity | 0.325 kVA |
|---|
| Output power | 210 W |
|---|
| Waveform | Stepwise |
|---|
| Surge energy rating | 310 J |
|---|
| Number of input phases | 1 |
|---|
| Number of output phases | 1 |
|---|
| Single-phase input voltage supported | 230 V |
|---|
Ports & interfaces
| AC outlet types | IEC 60320 |
|---|
| Number of output IEC jumpers | 3 |
|---|
| SmartSlot | No |
|---|
| SmartConnect port | No |
|---|
Battery
| Battery replacement accessibility | End-user |
|---|
| Battery technology | Sealed Lead Acid (VRLA) |
|---|
| Battery recharge time | 6 h |
|---|
| Replacement battery cartridge | RBC2 |
|---|
Design
| Rack capacity | 0U |
|---|
| Product colour | Beige |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -15 - 45 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95% |
|---|
| Storage relative humidity (H-H) | 0 - 95% |
|---|
Technical details
| Sustainable packaging | No |
|---|
| Packaging recycled materials | Recycled cardboard |
|---|
| SCIP number | 019b51cf-d7f1-4f06-ac85-1378fc94c7aa |
|---|
| Preferred mounting position | no preference |
|---|
| Take-back system | No |
|---|
| Packaging without single use plastic | No |
|---|
Certificates
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
|---|
| Compliance certificates | RoHS, REACH, WEEE |
|---|
| Certification | C-Tick; CE; GOST; VDE |
|---|
Packaging content
| Management card included | No |
|---|
Weight & dimensions
| Width | 91 mm |
|---|
| Depth | 284 mm |
|---|
| Height | 165 mm |
|---|
| Weight | 5.73 kg |
|---|
Packaging data
| Package weight | 6.73 kg |
|---|
Logistics data
| Customs product code (TARIC) | 8504409590 |
|---|
| Harmonized System (HS) code | 85078000 |
|---|
| Total carbon footprint (kg of CO2e) | 226.32654545454545 |
|---|
| Country of origin | Philippines |
|---|
Other features

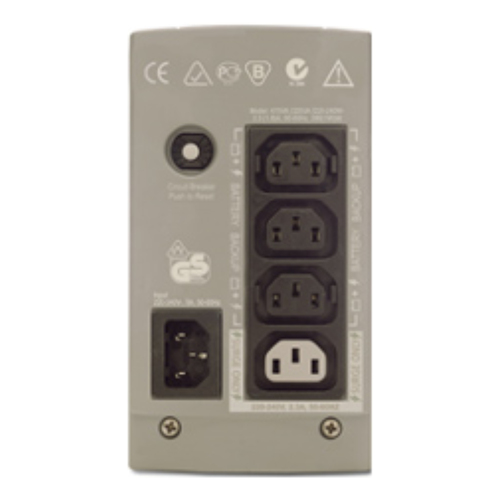

| Output connections | IEC 320 C13 |
|---|
| Input connection type | IEC 60320 C14 |
|---|
| Dimensions (WxDxH) | 91 x 284 x 165 mm |
|---|
| Nominal output voltage | 230 V |
|---|
| Filtering description | 5% IEEE |
|---|
| Nominal input voltage | 230 V |
|---|
| Output connection type | 3 IEC 60320C13; 1 IEC 60320C13surge; 2 IEC Jumpers |
|---|
| Output voltage | 230 V |
|---|
| Mounting | front |
|---|
| Optimising energy efficiency | Energy efficient product |
|---|
| Package dimensions (WxDxH) | 241 x 368 x 178 mm |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
