Products › Power & Rack Equipment
APC BY SCHNEIDER ELECTRIC

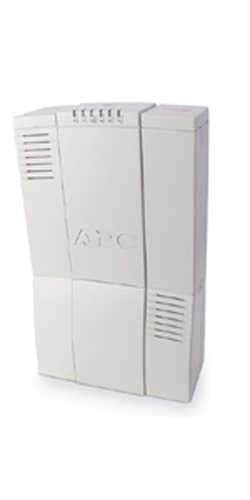

APC BACK-UPS HS 500VA 230V uninterruptible power supply (UPS) 0.5 kVA 300 W
Part number BH500INET
BACK-UPS 500 230V STRUCTURED WIRING UPS
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- BH500INET
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Includes: Cat6 Ethernet Cable, CD with software, Installation Guide, User Manual, Wall-mounting template
Features:
- Audible alarms
- Automatic self-test
- Battery replacement without tools
- Cold-start capable
- Cord management
- Dataline surge protection
- Hot-swappable batteries
- LED status indicators
- Network manageable
- Transformer-block spaced outlets
Specifications
| Output power capacity | 0.5 kVA |
|---|---|
| Output power | 300 W |
| Surge energy rating | 600 J |
| Noise level | 40 dB |
| Audible alarm(s) | Yes |
| AC outlet types | IEC 60320 |
|---|
| Typical backup time at full load | 4.4 min |
|---|---|
| Typical backup time at half load | 16.3 min |
| Replacement battery cartridge | RBC - 1 |
| Cable length | 2.44 m |
|---|---|
| Product colour | Beige |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Weight | 7.42 kg |
|---|
| Harmonized System (HS) code | 85078000 |
|---|
| Battery type | Lead-Acid |
|---|---|
| Output connections | 4 x IEC 320 C13 |
| Input connection type | IEC 320 C6 |
| Dimensions (WxDxH) | 225 x 105 x 372 mm |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
| Networking features | 10/100 Base-T Ethernet |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
