Products › Power & Rack Equipment
APC BY SCHNEIDER ELECTRIC

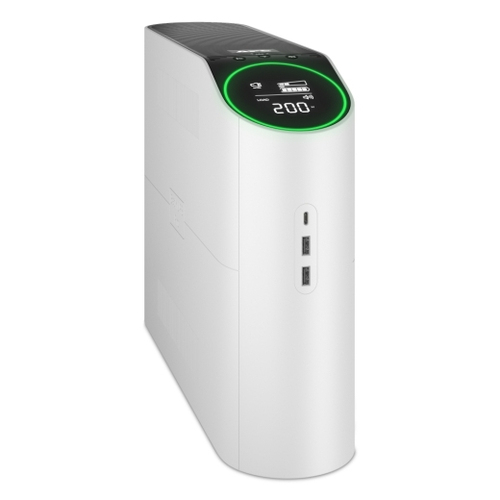

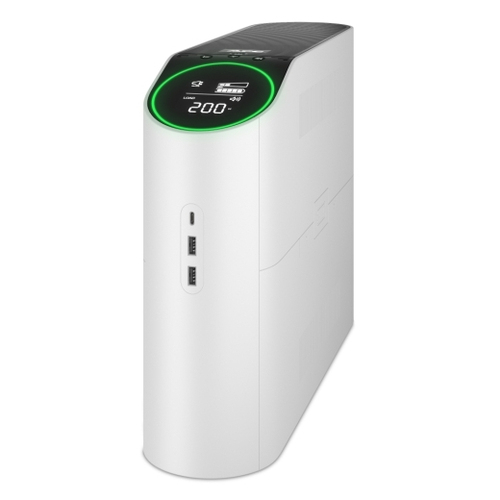

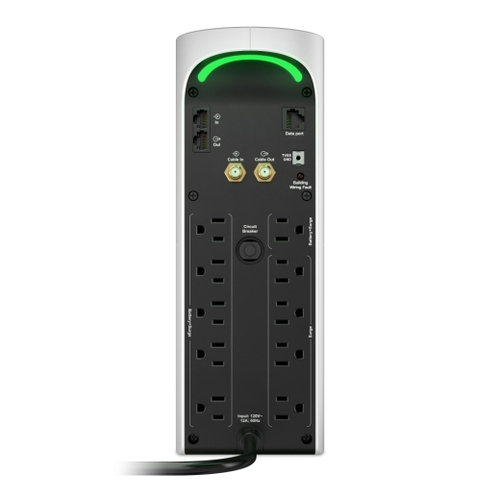

APC BGM1500 uninterruptible power supply (UPS) Line-Interactive 1.5 kVA 900 W
Part number BGM1500
APC GAMING BACK-UPS 1500VA PURE SINEWAVE 120V 10 OUTLET
- Resettable circuit breaker
- Simple battery replacement
- Intelligent battery management
- Green mode
- Customizable voltage-transfer points
- Customizable voltage sensitivity
- Transformer-block spaced outlets
- Boost and Trim Automatic Voltage Regulation (AVR)
- Cold-start capable
- Automatic self-test
- Battery failure notification
- LCD Status Display
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- BGM1500
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Specifications
| UPS topology | Line-Interactive |
|---|---|
| Output power capacity | 1.5 kVA |
| Output power | 900 W |
| Waveform | Sine |
| Input operation voltage (min) | 88 V |
| Input operation voltage (max) | 120 V |
| Input frequency | 60 Hz |
| Output operation voltage (min) | 120 V |
| Output operation voltage (max) | 120 V |
| Output frequency | 60 Hz |
| Automatic Voltage Regulation (AVR) | Yes |
| Maximum current | 12 A |
| Surge energy rating | 1080 J |
| Response time | 8 ms |
| EMI/RFI noise filtering | Yes |
| Noise level | 45 dB |
| Surge protection | Yes |
| Audible alarm(s) | Yes |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| AC outlet types | NEMA 5-15R |
|---|---|
| Power plug | NEMA 5-15P |
| USB port | Yes |
| Serial interface type | RJ-45 |
| Cabling technology | 10/100/1000Base-T(X) |
| Emergency Power Off (EPO) connector | Yes |
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Battery capacity | 257 Ah |
| Number of batteries supported | 1 |
| Battery life (max) | 5 year(s) |
| Automatic battery test | Yes |
| Cold start | Yes |
| Cable length | 1.8 m |
|---|---|
| Product colour | White |
| Display type | LCD |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 3048 m |
| Cables included | Coaxial, USB cable |
|---|---|
| Manual | Yes |
| Width | 105 mm |
|---|---|
| Depth | 408 mm |
| Height | 291 mm |
| Weight | 1.15 kg |
| Package width | 105 mm |
|---|---|
| Package depth | 408 mm |
| Package height | 291 mm |
| Package weight | 11.5 kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
